Product Summary

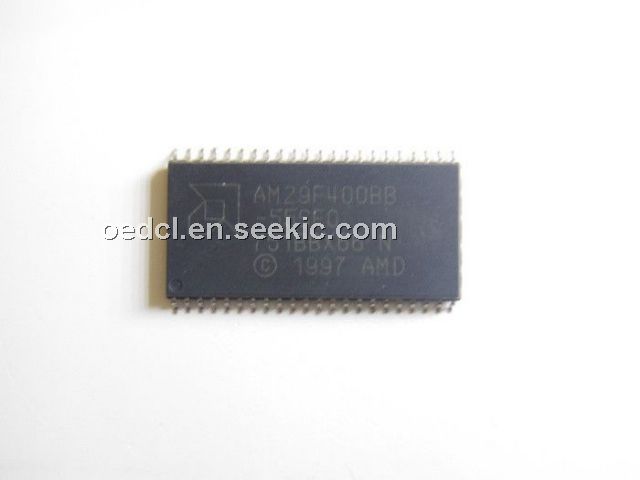

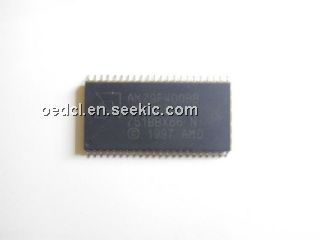

The AM29F400BB-55SE0 is a 4 Mbit, 5.0 volt-only Flash memory organized as 524,288 bytes or 262,144 words. The AM29F400BB-55SE0is offered in 44-pin SO and 48-pin TSOP packages. The AM29F400BB-55SE0is also available in Known Good Die (KGD) form. For more information, refer to publication number 21258. The word-wide data(x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The AM29F400BB-55SE0is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0V VPP is not required for write or erase operations.
Parametrics
AM29F400BB-55SE0 absolute maximum ratings: (1)Storage Temperature Plastic Packages:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Voltage with Respect to Ground: VCC:–2.0 V to +7.0 V, A9, OE#, and RESET# :–2.0 V to +12.5 V, All other pins:–0.5 V to +7.0 V; (4)Output Short Circuit Current:200 mA.
Features
AM29F400BB-55SE0 features: (1)Single power supply operation; (2)5.0 volt-only operation for read, erase, and program operations; (3)Minimizes system level requirements; (4)1 μA standby mode current; (5)20 mA read current (byte mode); (6)28 mA read current (word mode); (7)30 mA program/erase current; (8)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and seven 64 Kbyte sectors (byte mode); (9)One 8 Kword, two 4 Kword, one 16 Kword, and seven 32 Kword sectors (word mode); (10)Supports full chip erase; (11)Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors; (12)Embedded Program algorithm automatically writes and verifies data at specified addresses; (13)Minimum 1,000,000 program/erase cycles per sector guaranteed; (14)Pinout and software compatible with single-power-supply Flash; (15)Superior inadvertent write protection; (16)Provides a software method of detecting program or erase operation completion; (17)Provides a hardware method of detecting program or erase cycle completion; (18)Hardware method to reset the device to reading array data.
