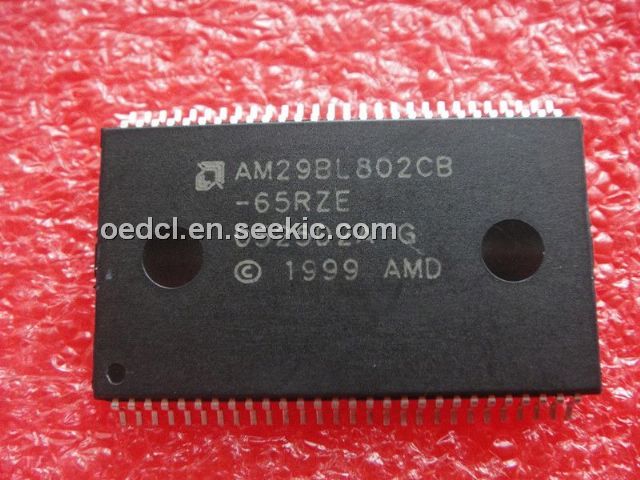

Product Summary
The AM29BL802CB-65RZE is a Burst Mode Flash Memory. The AM29BL802CB-65RZE is an 8 Mbit, 3.0 Volt-only burst mode Flash memory devices organized as 524, 288 words. The AM29BL802CB-65RZE is offered in a 56-pin SSOP package. These devices are designed to be programmed in-system with the standard system 3.0-volt VCC supply. A 12.0-volt VPP or 5.0 VCC is not required for program or erase operations. The AM29BL802CB-65RZE can also be programmed in standard EPROM programmers. The AM29BL802CB-65RZE offers access times of 65, 70, 90, and 120 ns, allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.
Parametrics
AM29BL802CB-65RZE absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –65℃ to +125℃; (3)Voltage with Respect to Ground VCC (Note 1): –0.5 V to +4.0 V; (4)A9, OE#, and RESET# (Note 2): –0.5 V to +13.0 V; (5)All other pins (Note 1): –0.5 V to +5.5 V; (6)Output Short Circuit Current (Note 3): 200 mA.
Features
AM29BL802CB-65RZE features: (1)32 words sequential with wrap around (linear 32), bottom boot; (2)One 8 Kword, two 4 Kword, one 48 Kword, three 64 Kword, and two 128 Kword sectors; (3)Alterable burst length via BAA# pin; (4)5 V-tolerant data, address, and control signals; (5)Minimum 100,000 erase cycle guarantee per sector; (6)20-year data retention.

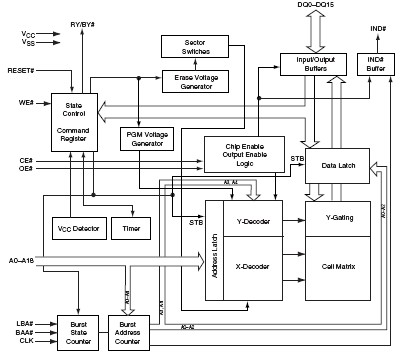

Diagrams
