Product Summary

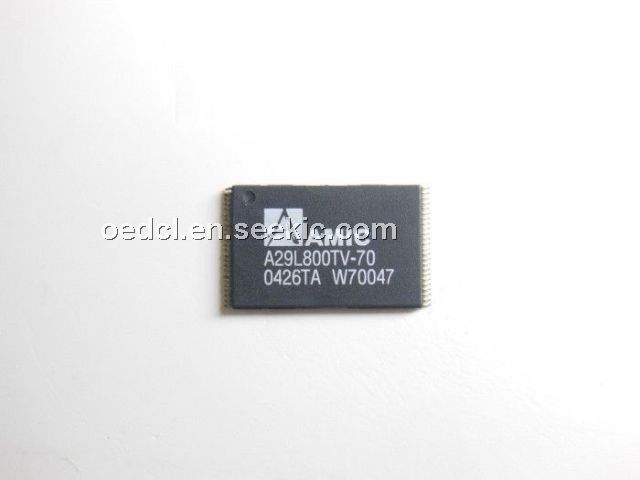

The a29L800tv-70 is an 8Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes of 8 bits or 524,288 words of 16 bits each. The a29L800tv-70 is offered in 48-ball TFBGA, 44-pin SOP and 48-Pin TSOP packages. The a29L800tv-70 is designed to be programmed in-system with the standard system 3.0 volt VCC supply.

Parametrics

a29L800tv-70 absolute maximum ratings: (1) Storage Temperature Plastic Packages: 0 to +70°C, for -U series: -45 to +85°C; (2) Ambient Temperature with Power Applied: 0 to +70°C, for -U series: -45 to +85°C; (3) Voltage with Respect to Ground VCC: -0.5 to +4V; (4) A9, OE & RESET: -0.5 to +12.5V; (5) All other pins: -0.5V to VCC + 0.5V ; (6) Output Short Circuit Current: 200mA.

Features

a29L800tv-70 features: (1) Single power supply operation; (2) Flexible sector architecture; (3) Extended operating temperature range: -45 to +85°C for -U series; (4) Unlock Bypass Program Command; (5) Top or bottom boot block configurations available; (6) Typical 100,000 program/erase cycles per sector; (7) Compatible with JEDEC-standards; (8) Erase Suspend/Erase Resume.

Diagrams

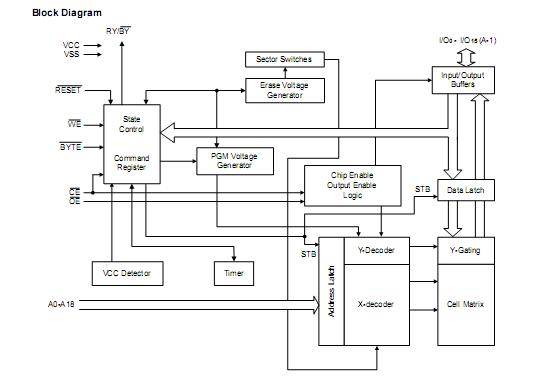

a29L800tv-70 block diagram
