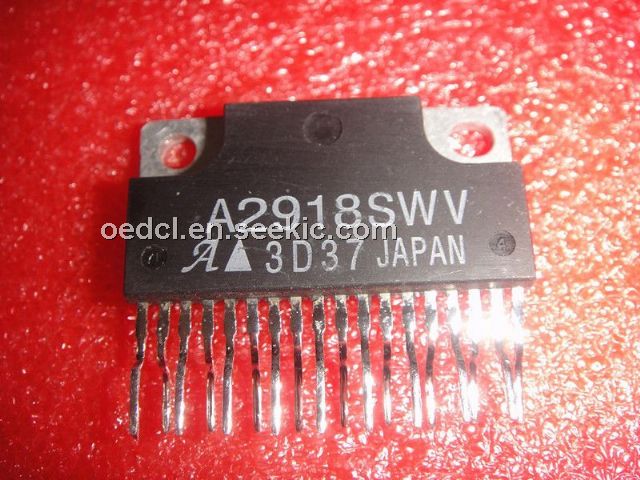

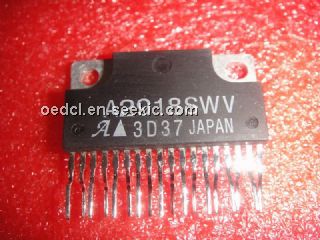

Product Summary
The A2918SWV is a dual full-bridge pwm motor driver. The A2918SWV is designed to drive both windings of a bipolar stepper motor or bidirectionally control two DC motor. All bridges are capable of sustaining 45 V and include internal pulse-width modulation (PWM) control of the output current to 1.5 A. For PWM current control, the maximum output current is determined by the user selection of a reference voltage and sensing resistor. A PHASE input to each bridge determines load current direction. Active low ENABLE inputs control the four drivers in each bridge.
Parametrics
A2918SWV absolute maximum ratings: (1)Motor supply voltage, VBB: 45 V; (2)Output current, IOUT (tw≤20 μs): ±1.75 A; (Continuous)±1.5 A; (3)Logic supply voltage, VCC: 7.0 V; (4)Logic input voltage range, VIN: -0.3 V to +7.0 V; (5)Output emitter voltage, VE: 1.5 V; (6)Operating temperature range, TA: -20 to +85 ℃; (7)Storage temperature range, Ts: -40 to +150 ℃.
Features
A2918SWV features: (1)±1.5 A continuous output current; (2)45 V output sustaining voltage; (3)Internal pwm current control; (4)Low output saturation voltage; (5)Internal clamp diodes; (6)Internal thermal shutdown circuitry; (7)Similar to dual PBL3718 or dual PBL3770.

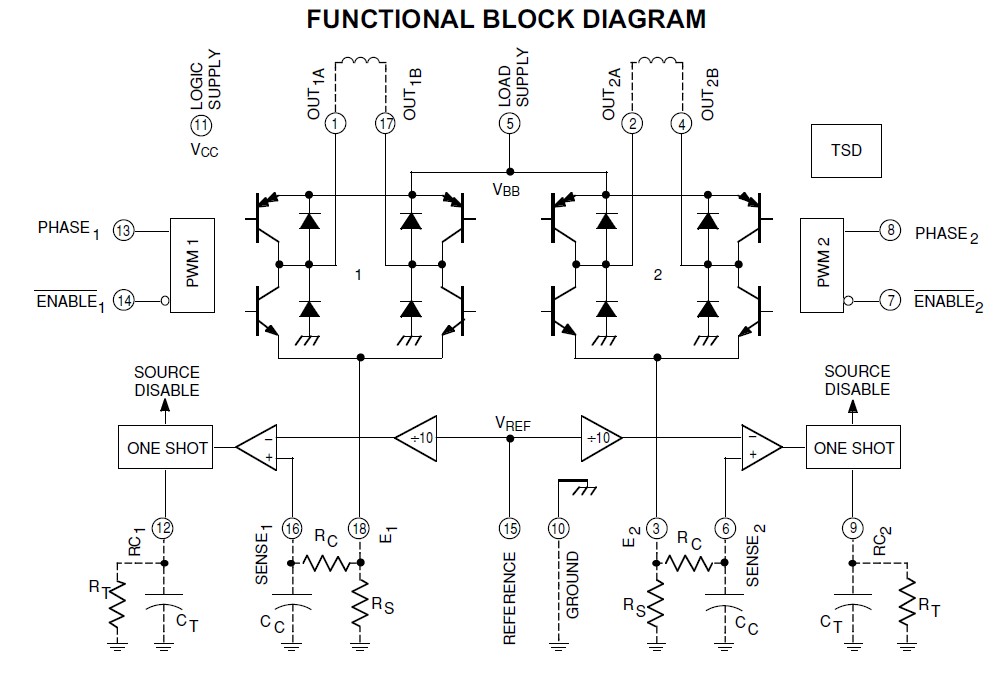

Diagrams
