74ABT16245BDGG

BiCMOS device, 16BIT, 48TSSOP, 4.5 V ~ 5.5 V, 32mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~10.00

PartNumber:: 74ABT16245BDGG

Brand:: NXP Semiconductors - nxp | Pack: TSSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-02-24

From Other Seller

Part Number:74ABT16245BDGG
US $1.00 - 10.00
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
PCM63P-K

US $18.00 - 25.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

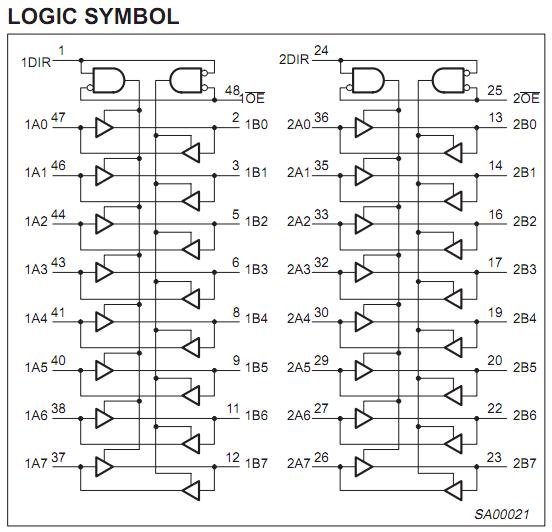

The 74ABT16245BDGG is a high-performance BiCMOS device. It combines low static and dynamic power dissipation with high speed and high output drive. The 74ABT16245BDGG is a dual octal transceiver featuring non-inverting 3-State bus compatible outputs in both send and receive directions. The control function implementation minimizes external timing requirements. The 74ABT16245BDGG features two Output Enable (1OE, 2OE) inputs for easy cascading and two Direction (1DIR, 2DIR) inputs for direction control.

Parametrics

74ABT16245BDGG absolute maximum ratings: (1)VCC, DC supply voltage: –0.5 to +7.0 V; (2)IIK, DC input diode current: –18 mA; (3)VI, DC input voltage: –1.2 to +7.0 V; (4)IOK, DC output diode current: –50 mA; (5)VOUT, DC output voltage:e –0.5 to +5.5 V; (6)IOUT, DC output current: 128mA; (7)Tstg, Storage temperature range: –65 to 150℃.

Features

74ABT16245BDGG features: (1)16-bit bidirectional bus interface; (2)Power-up 3-State; (3)Multiple VCC and GND pins minimize switching noise; (4) 3-State buffers; (5)Output capability: +64 mA / –32 mA; (6)Latch-up protection exceeds 500 mA per JEDEC Std 17; (7)Live insertion/extraction permitted; (8)ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model; (9)74ABTH16245B incorporates bus-hold data inputs which eliminate the need for external pull-up resistors to hold unused inputs; (10)Bus-hold data inputs eliminate the need for external pull-up resistors to hold unused inputs.
