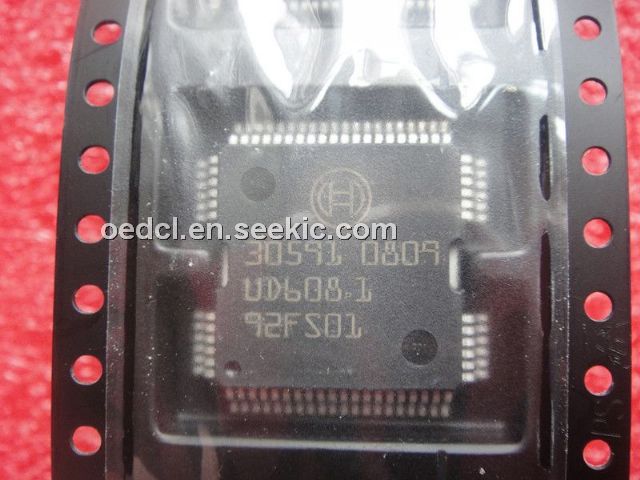

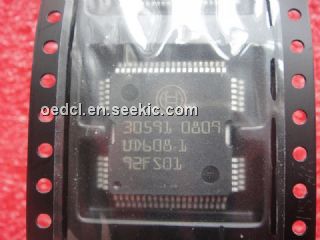

Product Summary

The 30591 is a hall-effect gear-tooth sensors—AC coupled. The 30591 is monolithic integrated circuits that switch in response to changing differential magnetic fields created by moving ferrous targets. The 30591 is ideal for use in non-zero-speed, gear-tooth-based speed, position, and timing applications such as in anti-lock braking systems, transmissions, and crankshafts.

Parametrics

30591 absolute maximum ratings: (1)Supply Voltage: 24 V; (2)Reverse Battery Voltage: -30 V; (3)Magnetic Flux Density: Unlimited; (4)Output OFF Voltage: 24 V; (5)Output Current: 25 mA; (6)Package Power Dissipation: 500 mW; (7)Operating Temperature Range: -20℃ to +85℃; (8)Storage Temperature Range: -65℃ to +150℃.

Features

30591 features: (1)Senses Motion of Ferrous Targets Such as Gears; (2)Wide Operating Temperature Range; (3)Operation to 30 kHz; (4)Resistant to RFI, EMI; (5)Large Effective Air Gap; (6)4.5 V to 24 V Operation; (7)Output Compatible With All Logic Families; (8)Reverse Battery Protection; (9)Resistant to Physical Stress.

Diagrams

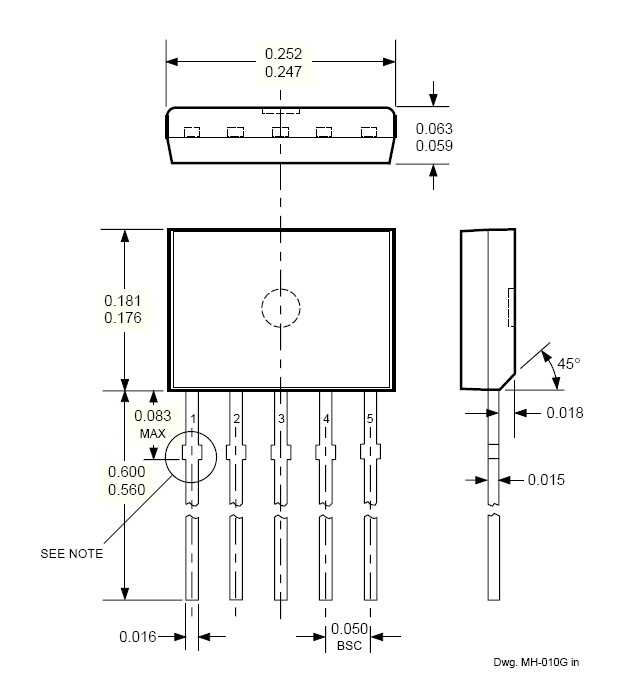

30591 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
3059113
3059113
Phoenix Contact
Terminal Block Tools & Accessories FB 10-9
Data Sheet
0-1: $2.66
1-10: $2.62
10-50: $2.58
50-100: $2.38
30591-25-CP
30591-25-CP
RAF Electronic Hardware
Circuit Board Hardware - PCB 1/2 Rnd CPVC Spacer 1/2"L CPVC .266
