Product Summary

The 2SJ598 is a P-channel MOS Field Effect Transistor designed for solenoid, motor and lamp driver.

Parametrics

2SJ598 absolute maximum ratings: (1)Drain to Source Voltage (VGS = 0 V): -60V; (2)Gate to Source Voltage (VDS = 0 V): ±20V; (3)Drain Current (DC) (TC = 25℃): ±12A; (4)Drain Current (pulse): ±30A; (5)Total Power Dissipation (TC = 25℃): 23W; (6)Total Power Dissipation (TA = 25°C): 1.0W; (7)Channel Temperature: 150℃; (8)Storage Temperature: -55℃ to +150℃; (9)Single Avalanche Current: -12A; (10)Single Avalanche Energy: 14.4 mJ.

Features

2SJ598 features: (1)Low on-state resistance: RDS(on)1 = 130mΩMAX. (VGS = -10V, ID = -6A); RDS(on)2 = 190 mΩMAX. (VGS = -4.0V, ID = -6A); (2)Low Ciss: Ciss = 720 pF TYP; (3)Built-in gate protection diode; (4)TO-251/TO-252 package.

Diagrams

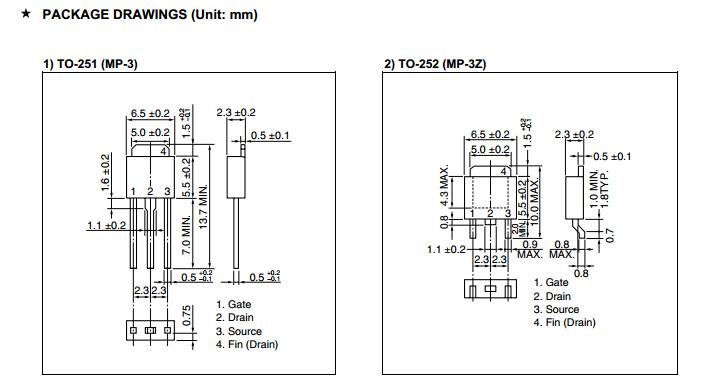

2SJ598 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

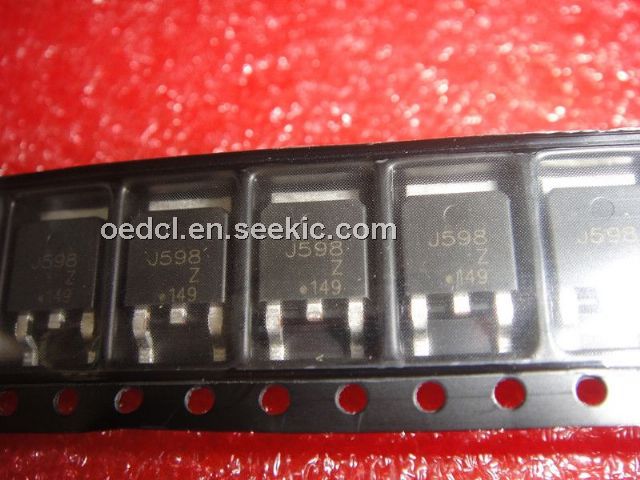

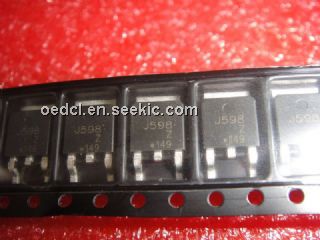

2SJ598
2SJ598

Other


Data Sheet

Negotiable
