Product Summary

The 2MBI100SC-120-03 is a IGBT Module. The applications of the 2MBI100SC-120-03 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI100SC-120-03 absolute maximum ratings: (1)Collector-Emitter voltage : 1200V; (2)Gate-Emitter voltage : ±20V; (3)Collector current : 150A; (4)Max. power dissipation : 780W; (5)Operating temperature : +150℃; (6)Storage temperature : -40 to +125℃.

Features

2MBI100SC-120-03 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

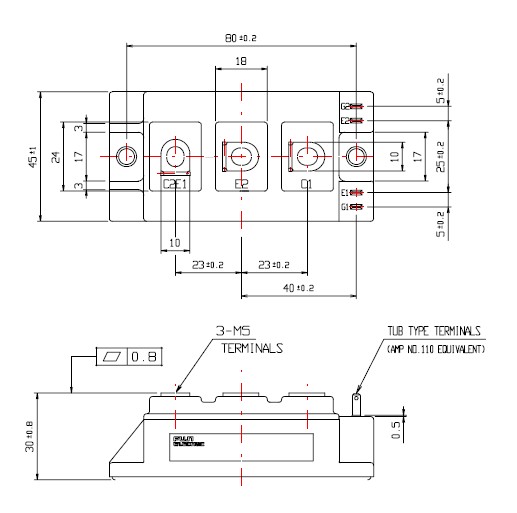

2MBI100SC-120-03 dimension
