Product Summary

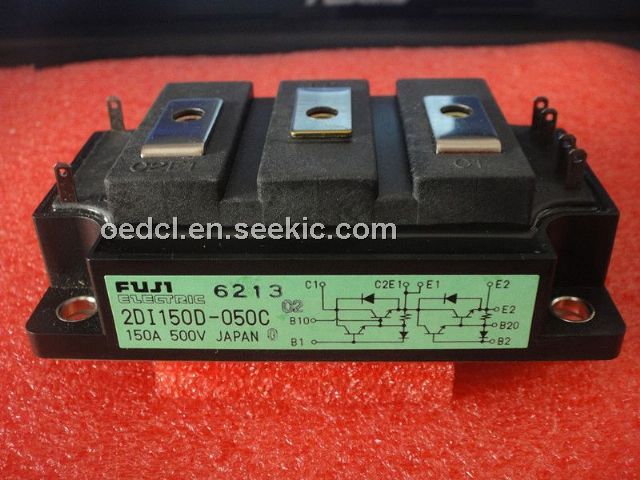

The 2DI150D-050C is a Power Transistor Module. The applications of the 2DI150D-050C are High Power Switching, AC Motor Controls, DC Motor Controls, Uninterruptible Power Supply.
Parametrics
2DI150D-050C absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 7V; (5)IC: 150A; (6)ICP(1ms): 300A; (7)PC: 690W(one Tansistor), 1380W(two Tansistors); (8)Junction Temperature(Tj): +150℃; (9)Storage Temperature (Tstg): -40℃ to +125℃; (10)Weight: 340g; (11)Visol(AC. 1min): 2500V.
Features
2DI150D-050C features: (1)Including Free Wheeling Diode; (2) High DC Current Grain; (3)Insulated Type.

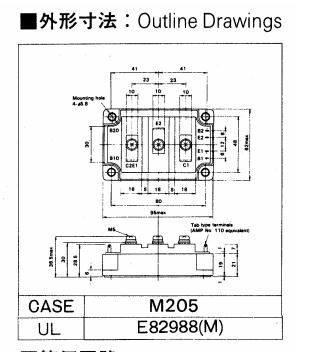

Diagrams
