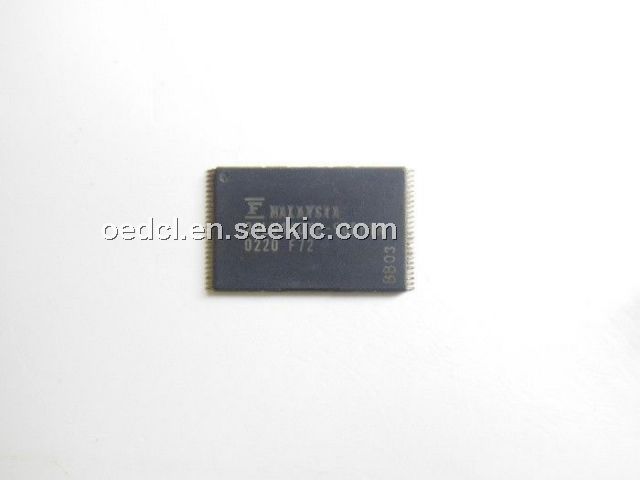

Product Summary
The 29LV160TE-90PFTN is a 16 Mbit, 3.0 Volt-only Flash memory. It is organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The word-wide data (×16) appears on DQ15–DQ0; the byte-wide (×8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0V VPP or 5.0VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers.
Parametrics
29LV160TE-90PFTN absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1): -0.5V to +4.0V, A9, OE#, ACC and RESET#(NOTE2): -0.5V to +12.5V, All other pins(Note 1): -0.5V to VCC+0.5V; (4)Output Short Circuit Current (Note 3): 200mA.
Features
29LV160TE-90PFTN features: (1)Single power supply operation; (2)Manufactured on 0.35 μm process technology; (3)Supports Common Flash Memory Interface (CFI); (4)Ultra low power consumption (typical values at 5 MHz); (5)Flexible sector architecture; (6)Minimum 1,000,000 write cycle guarantee per sector.

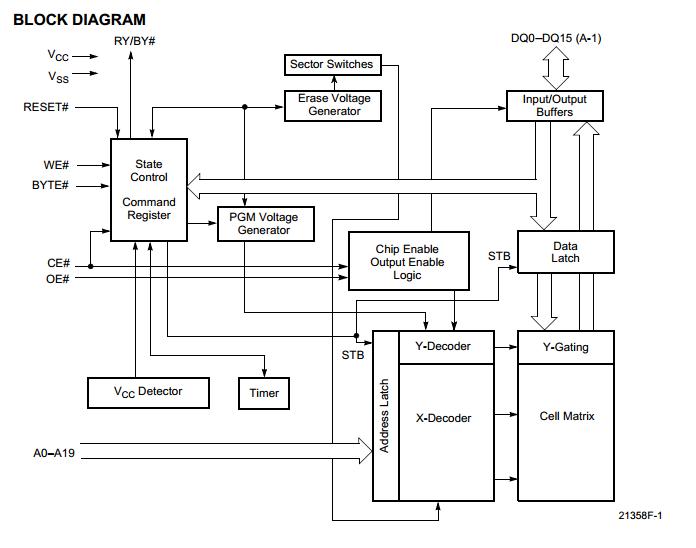

Diagrams
