Product Summary

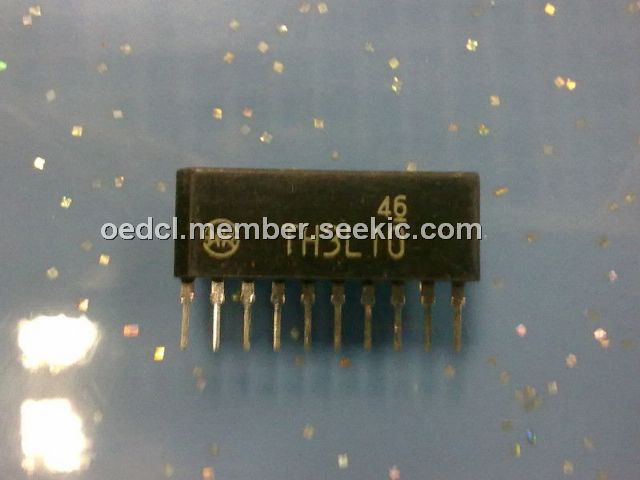

The TH3L10 is a high voltage, high speed, switching transistor.

Parametrics

TH3L10 absolute maximum ratings: (1)VRM: 900V; (2)VCEO: 800V; (3)IC: 6A; (4)IB: 3A; (5)PT: 50W; (6)Tstg: -55 to 150℃; (7)Tj: 150℃.

Features

TH3L10 features: (1)VCEO: 800V; (2)hFE: 7; (3)VCE: 1.5V; (4)VBE: 2.5V; (5)θjc: 2.5℃/W; (6)fT: 7MHz; (7)ton: 0.5μs; (8)ts: 3μs; (9)tf: 0.5μs.
