Product Summary

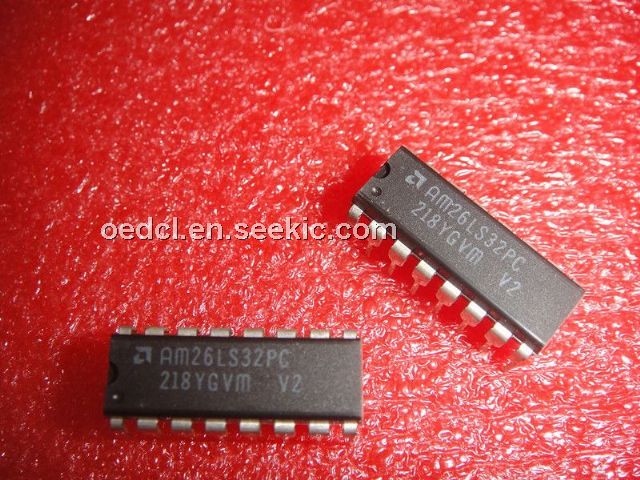

The am26ls32pc is a quad EIA-422/423 line receiver with three-state outputs. The am26ls32pc features four independent receiver chains which comply with EIA Standards for the Electrical Characteristics of Balanced/Unbalanced Voltage Digital Interface Circuits. Receiver outputs are 74LS compatible, three–state structures which are forced to a high impedance state when Pin 4 is a Logic “0” and Pin 12 is a Logic “1.” A PNP device buffers each output control pin to assure minimum loading for either Logic “1” or Logic “0” inputs. In addition, each receiver chain has internal hysteresis circuitry to improve noise margin and discourage output instability for slowly changing input waveforms.
Parametrics
am26ls32pc absolute maximum ratings: (1)Power Supply Voltage VCC: 7.0 Vdc; (2)Input Common Mode Voltage VICM: ± 25 Vdc; (3)Input Differential Voltage VID: ± 25 Vdc; (4)Three–State Control Input Voltage VI: 7.0 Vdc; (5)Output Sink Current IO: 50 mA; (6)Storage Temperature Tstg: – 65 to + 150℃; (7)Operating Junction Temperature TJ: + 150℃.
Features
am26ls32pc features: (1)Four Independent Receiver Chains; (2)Three-state Outputs; (3)High Impedance Output Control Inputs (PIA Compatible); (4)Internal Hysteresis 30 mV (Typical) @ Zero Volts Common Mode; (5)Fast Propagation Times 25 ns (Typical); (6)TTL Compatible; (7)Single 5.0 V Supply Voltage; (8)Fail-safe Input-output Relationship. Output Always High When Inputs Are Open, Terminated or Shorted; (9)6.0 k Minimum Input Impedance.

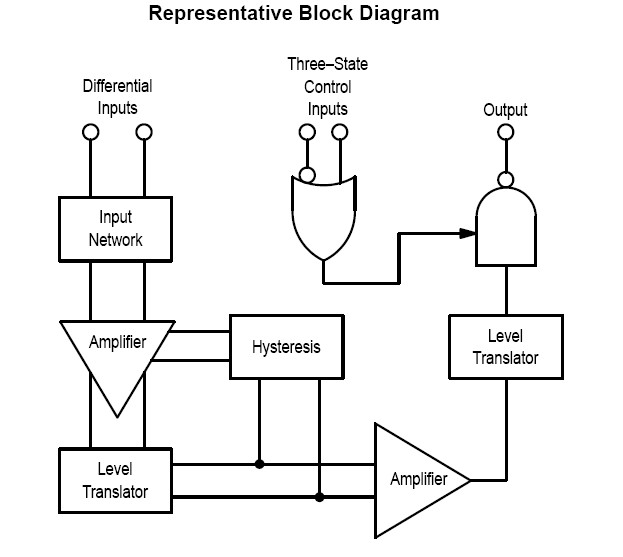

Diagrams
