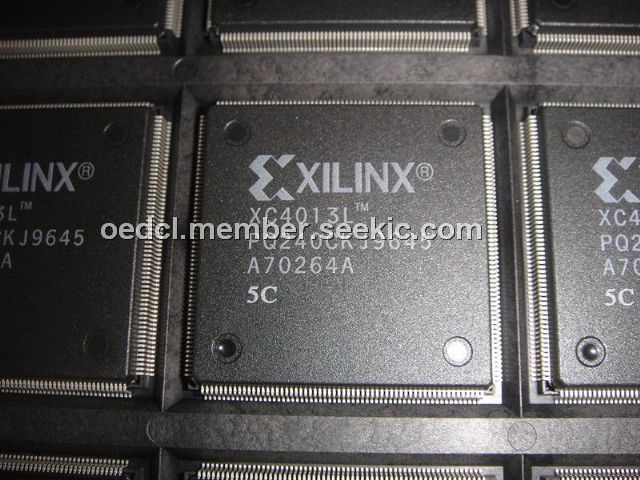

XC4013L

Product Summary

The XC4013L is a Field-Programmable Gate Array. It provides the benefits of custom CMOS VLSI, while avoiding the initial cost, time delay, and inherent risk of a conventional masked gate array. The XC4013L provides a regular, flexible, programmable architecture of Configurable Logic Blocks (CLBs), interconnected by a powerful hierarchy of versatile routing resources, and surrounded by a perimeter of programmable Input/Output Blocks (IOBs). The XC4013L is supported by powerful and sophisticated software, covering every aspect of design: from schematic entry, to simulation, to automatic block placement and routing of interconnects, and finally the creation of the configuration bit stream.

Parametrics

XC4013L absolute maximum ratings: (1)VCC Supply voltage relative to GND: –0.5 to +7.0V; (2)VIN Input voltage with respect to GND: –0.5 to VCC +0.5V; (3)VTS Voltage applied to 3-state output: –0.5 to VCC +0.5V; (4)TSTG Storage temperature (ambient): –65℃ to + 150℃; (5)TSOL Maximum soldering temperature (10s @ 1/16 in. = 1.5mm): + 260℃; (6)TJ Junction temperature: +150℃.

Features

XC4013L features: (1)Third Generation Field-Programmable Gate Arrays; (2)Abundant flip-flops; (3)Flexible function generators; (4)On-chip ultra-fast RAM; (5)Dedicated high-speed carry-propagation circuit; (6)Wide edge decoders (four per edge); (7)Hierarchy of interconnect lines; (8)Internal 3-state bus capability; (9)Eight global low-skew clock or signal distribution network; (10)Flexible Array Architecture; (11)IEEE 1149.1-compatible boundary-scan logic support; (12)Programmable output slew rate (2 modes); (13)Programmable input pull-up or pull-down resistors; (14)12mA sink current per output; (15)24mA sink current per output pair; (16)Configured by Loading Binary File; (17)Interfaces to popular design environments like Viewlogic, Mentor Graphics and OrCAD; (18)Fully automatic partitioning, placement and routing; (19)Interactive design editor for design optimization; (20)288 macros, 34 hard macros, RAM/ROM compiler.

Diagrams
