Product Summary

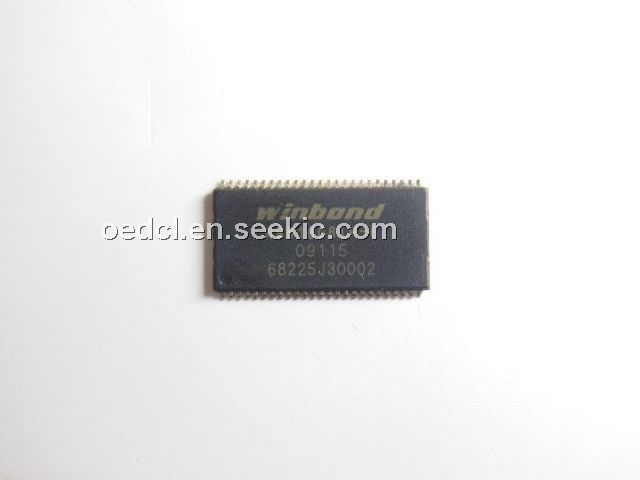

The W9816G6IH-6 is a high-speed synchronous dynamic random access memory (SDRAM), organized as 512K words × 2 banks × 16 bits. The W9816G6IH-6 delivers a data bandwidth of up to 200M words per second. For different application, the W9816G6IH-6 is sorted into the following speed grades: -5/-6/-6I/-6A/-7 and -7I. The -5 parts can run up to 200MHz/CL3 or 143MHz/CL2. The -6/-6I/-6A parts can run up to 166MHz/CL3 (the -6I industrial grade, -6A automotive grade which is guaranteed to support -40℃ ~ 85℃). The -7/-7I parts can run up to 143MHz/CL3 (the -7I grade which is guaranteed to support -40℃ ~ 85℃). Accesses to the SDRAM are burst oriented. Consecutive memory location in one page can be accessed at a burst length of 1, 2, 4, 8 or full page when a bank and row is selected by an ACTIVE command. Column addresses are automatically generated by the SDRAM internal counter in burst operation. Random column read is also possible by providing its address at each clock cycle. The multiple bank nature enables interleaving among internal banks to hide the precharging time. By having a programmable Mode Register, the system can change burst length, latency cycle, interleave or sequential burst to maximize its performance. The W9816G6IH-6 is ideal for main memory in high performance applications.

Parametrics

W9816G6IH-6 absolute maximum ratings: (1)Input, Output Voltage VIN, VOUT: -1 ~ VCC + 0.3 V; (2)Power Supply Voltage VCC, VCCQ: -1~ 4.6 V; (3)Operating Temperature for -5/-6/-7 TOPR: 0 ~ 70 ℃; (4)Operating Temperature for -6I/-6A/-7I TOPR: -40 ~ 85 ℃; (5)Storage Temperature TSTG: -55 ~ 150 ℃; (6)Soldering Temperature (10s) TSOLDER: 260 ℃; (7)Power Dissipation PD: 1 W; (8)Short Circuit Output Current IOUT: 50 mA.

Features

W9816G6IH-6 features: (1)3.3V±0.3V power supply for -5/-6/-6I/-6A speed grades 2.7V~3.6V power supply for -7/-7I speed grades; (2)524,288 words x 2 banks x 16 bits organization; (3)Self Refresh current: standard and low power; (4)CAS Latency: 2 and 3; (5)Burst Length: 1, 2, 4, 8 and Full Page; (6)Burst Read, Single Writes Mode; (7)Byte Data Controlled by LDQM, UDQM; (8)Auto-precharge and Controlled Precharge; (9)4K Refresh Cycles/64 mS; (10)Interface: LVTTL; (11)Packaged in 50-pin, 400 mil TSOP II, using Lead free materials with RoHS compliant.

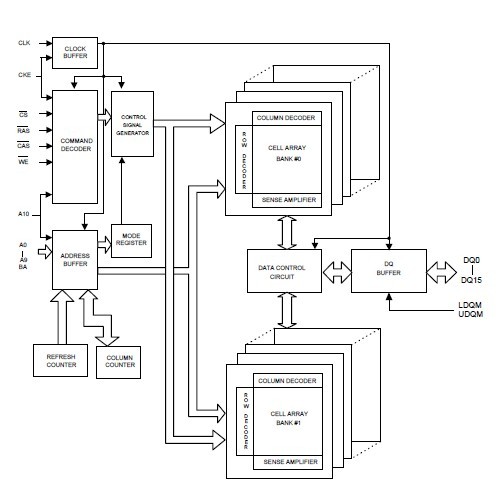

Diagrams

W9816G6IH-6 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
W9816G6IH-6
W9816G6IH-6


IC SDRAM 16MBIT 50TSOPII

Data Sheet

0-1: $0.56
1-10: $0.51
10-50: $0.50
50-100: $0.45
100-250: $0.44
250-500: $0.44
500-1000: $0.42
1000-2500: $0.41
2500-5000: $0.38
W9816G6IH-6I
W9816G6IH-6I


IC SDRAM 16MBIT 50TSOPII

Data Sheet

0-1: $0.74
1-10: $0.68
10-50: $0.66
50-100: $0.59
100-250: $0.58
250-500: $0.58
500-1000: $0.55
1000-2500: $0.53
2500-5000: $0.51
