Product Summary

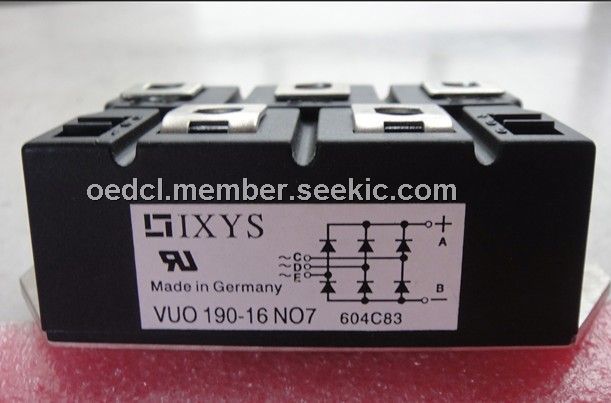

The VUO190-16NO7 is a three phase rectifier bridge. Applications of the VUO190-16NO7 are supplies for DC power equipment, Input rectifiers for PWM inverter, battery DC power supplies, field supply for DC motors.
Parametrics
VUO190-16NO7 absolute maximum ratings: (1)IdAV TC = 100℃, module: 248 A; (2)IdAV TA = 35℃ (RthCA = 0.2 K/W), module: 165 A; (3)IFSM TVJ = 45℃; t = 10 ms (50 Hz), sine: 2800 A; VR = 0 t = 8.3 ms (60 Hz), sine: 3300 A; TVJ = TVJM t = 10 ms (50 Hz), sine: 2500 A; VR = 0 t = 8.3 ms (60 Hz), sine: 2750 A; (4)I2t TVJ = 45℃ t = 10 ms (50 Hz), sine: 39 200 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 45 000 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine: 31 200 A2s; VR = 0 t = 8.3 ms (60 Hz), sine: 31 300 A2s; (5)TVJ: -40: +150 ℃; (6)TVJM: 150 ℃; (7)Tstg: -40: +125 ℃; (8)VISOL 50/60 Hz, RMS t = 1 min: 2500 V; (9)IISOL ≤ 1 mA t = 1 s: 3000 V.
Features
VUO190-16NO7 features: (1)Package with screw terminals; (2)Isolation voltage 3000 V~; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop; (6)UL registered E72873.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO190-16NO7 |
Ixys |
Bridge Rectifiers 190 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
