Product Summary

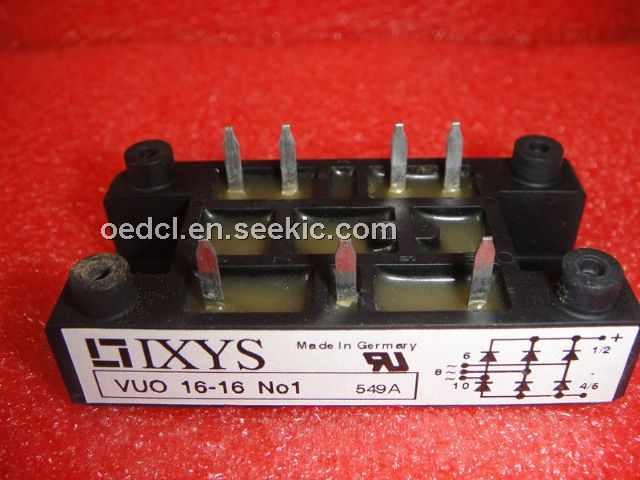

The vuo16-16no1 is a three phase rectifier bridge. Applications of the vuo16-16no1 include: Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies and Field supply for DC motors.
Parametrics
vuo16-16no1 absolute maximum ratings: (1) IdAV: 15A (Tk=90°C, module) ; (2) IdAV: 20A (TA=45°C, RthKA=0.5K/W) , module; (3) IaAVM: 20A (module) ; (4) IFSM: 100A (TVJ=45°C, t= 10ms (50 Hz), sine) , 106A (VR=0, t=8.3ms (60 Hz), sine) ; (5) VISOL: 3000V (50/60 Hz, RMS t=1 min) , 3600V (IISOL≤1mA, t=1s) ; (6) Tvj: -40 to +130°C; (7) Tvjm: 130°C; (8) Tstg: -40 to +125°C.
Features
vuo16-16no1 features: (1) Package with DCB ceramic base plate; (2) Isolation voltage 3600V; (3) Planar passivated chips; (4) Blocking voltage up to 1800V; (5) Low forward voltage drop; (6) Leads suitable for PC board soldering; (7) UL registered E72873.

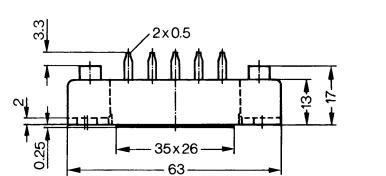

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO16-16NO1 |
Ixys |
Bridge Rectifiers 16 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
