Product Summary

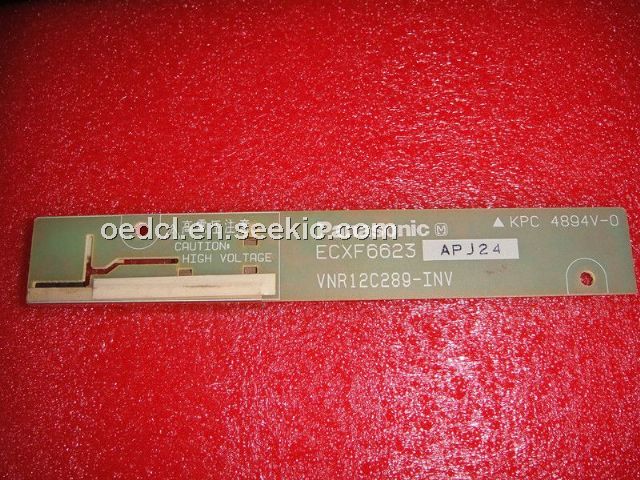

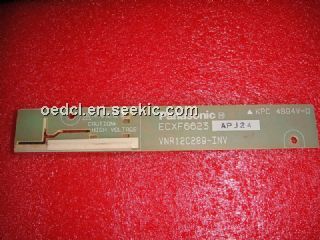

The VNR12C289-INV is a LCD Monitor Inverter.
Parametrics
VNR12C289-INV absolute maximum ratings: (1)supply voltage: 0 to 14.0V; (2)input voltage: -1 to VIN+1V; (3)storage temperature: -20 to 60°C; (4)operating temperature: 0 to 50°C; (5)humidity: 10 to 90%(RH).
Features
VNR12C289-INV features: (1)supply voltage: 10.8 to 13.2V; (2)input current: 650 to 750mA; (3)open output voltage: 1500V0-p; (4)frequency: 35 to 45kHz; (5)rush current(VIN=12V): 10A(o-p); (6)leak current(VIN=12V): 10uA.

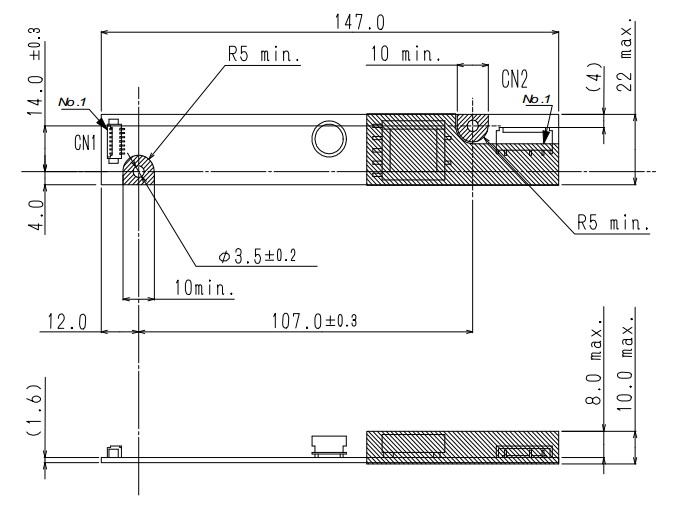

Diagrams
