Product Summary

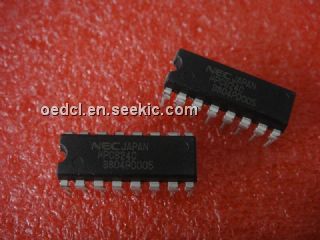

The UPC624C is a D/A converter. The UPC624C is a monolithic multiplying digital-to-analog converter designed for high speed performance and design/application flexibility. Advanced circuit design allows settling time of 85 ns. The outputs are high impedance dual complementary current types. Which allow simple resistive loading, op-amp voltage conversion, and other configurations. The adjustable threshold logic input allows connection to all popular logic families.
Parametrics
UPC624C absolute maximum ratings: (1)Supply voltage: 35V; (2)Analog current outputs: 4.2mA; (3)Operating temperature range: -20 to +80℃.
Features
UPC624C features: (1)Wide range multiplying capability; (2)Wide power supply range ±5 V to ±18V ; (3)High output Impedance and compliance; (4)Variable logic threshold; (5)Direct Interface to TTL. CMOS, PMOS; (6)Differential current outputs.

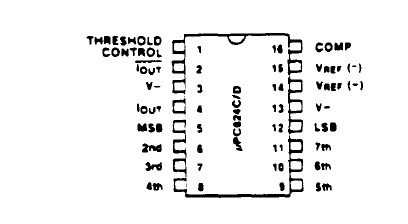

Diagrams
