Product Summary

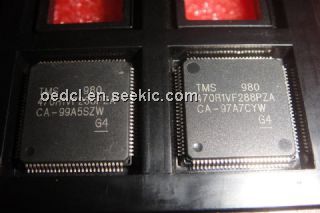

The TMS470R1VF288PZA is a RISC flash microcontroller.
Parametrics
TMS470R1VF288PZA absolute maximum ratings: (1)Supply voltage ranges: -0.3 V to 2.5 V; (2)Supply voltage ranges: -0.3 V to 4.1 V; (3)Input voltage range: -0.3 V to 6.0 V; (4)Input clamp current: -20mA; (5)Operating free-air temperature ranges, TA: -40℃ to 85℃; (6)Operating junction temperature range, TJ: -40℃ to 150℃; (7)Storage temperature range, Tstg: -40℃ to 150℃.
Features
TMS470R1VF288PZA features: (1)50 Dedicated General-Purpose I/O (GIO) Pins and 43 Additional Peripheral I/Os (PGE); (2)14 Dedicated General-Purpose I/O (GIO) Pins and 43 Additional Peripheral I/Os (PZ); (3)Sixteen External Interrupts; (4)Compatible ROM Device (Planned); (5)On-Chip Scan-Base Emulation Logic, IEEE Standard 1149.1(1) (JTAG) Test-Access Port; (6)144-Pin Plastic Low-Profile Quad Flatpack (PGE Suffix); (7)100-Pin Plastic Low-Profile Quad Flatpack (PZ Suffix).
Diagrams
