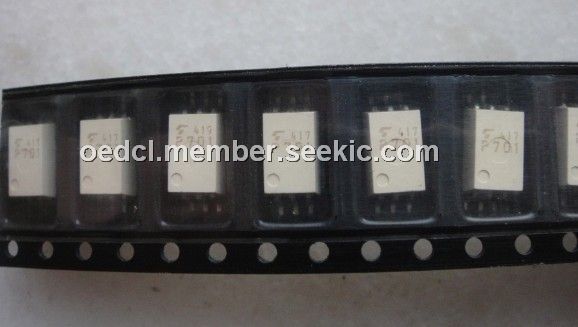

TLP701

TOSHIBA Photocoupler, MOS FET gate drive, Industrial inverter, 6SMD, ±0.6 A, 10 to 30 V, 700 ns

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.80~2.00

PartNumber:: TLP701

Brand:: Toshiba Semiconductor - Toshiba | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Pamela's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-27

From Other Seller

Part Number:TLP701
US $0.80 - 2.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

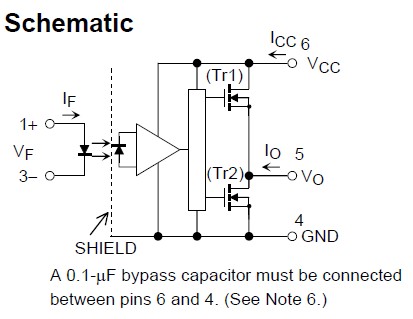

The TLP701 is a TOSHIBA Photocoupler. It consists of a GaAlAs light-emitting diode and an integrated photodetector. This unit is 6-lead SDIP package. The TLP701 is 50% smaller than the 8-pin DIP and meets the reinforced insulation class requirements of international safety standards. Therefore the mounting area can be reduced in equipment requiring safety standard certification. The TLP701 is suitable for gate driving circuits for IGBTs or power MOSFETs. In particular, the device is capable of direct gate driving of low-power IGBTs.

Parametrics

TLP701 absolute maximum ratings: (1)Forward current IF: 20 mA; (2)Forward current derating (Ta ≥ 85℃): △IF/△Ta: -0.54 mA/℃; (3)Peak transient forward current IFP: 1 A; (4)Reverse voltage VR: 5 V; (5)Junction temperature Tj: 125 ℃; (6)Operating frequency f: 25 kHz; (7)Operating temperature range Topr: -40 to 100 ℃; (8)Storage temperature range Tstg: -55 to 125 ℃; (9)Lead soldering temperature (10 s) Tsol: 260 ℃; (10)Isolation voltage (AC, 1 minute, R.H. ≤ 60%) BVS: 5000 Vrms.

Features

TLP701 features: (1)Peak output current: ±0.6 A (max); (2)Guaranteed performance over temperature: -40 to 100℃; (3)Supply current: 2 mA (max); (4)Power supply voltage: 10 to 30 V; (5)Threshold input current: IFLH = 5 mA (max); (6)Switching time (tpLH / tpHL): 700 ns (max); (7)Common mode transient immunity: ±10 kV/μs (min); (8)Isolation voltage: 5000 Vrms (min).
