Product Summary

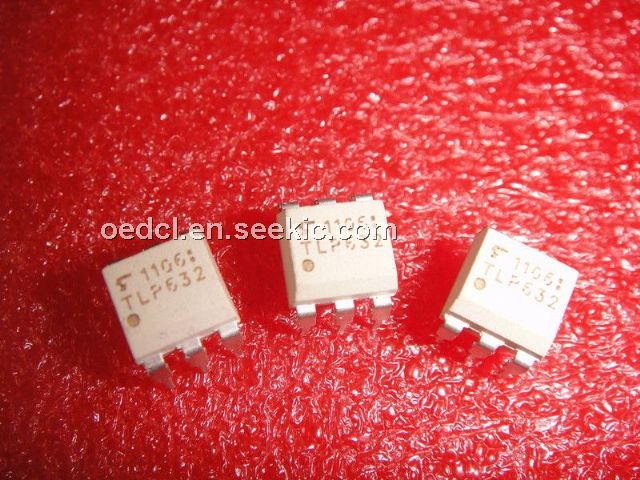

The TLP632 is a GaAs IRED & photo-transistor. It consists of a photo-transistor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP. The TLP632 is no-base internal connection for high-EMI environments.

Parametrics

TLP632 absolute maximum ratings: (1)storage temperature range: -55 to 125°C; (2)operating temperture range: -55 to 100°C; (3)lead soldering temperature(10s): 260°C; (4)total package power dissipation: 250mW; (5)isolation voltage: 5000Vrms; (6)forward current: 60mA; (7)collector emitter voltage: 55V; (8)emitter collector voltage: 7V.

Features

TLP632 features: (1)collector-emitter voltage: 55V; (2)current transfer ratio: 50%(min.), Rank GB: 100%(min.); (3)isolation voltage: 5000Vrms; (4)UL recognized: UL1577, file No.E67349.

Diagrams

TLP632 pin configuration
