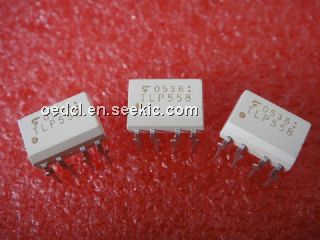

Product Summary

The TLP558 is a microprocessor system interface. The TLP558 is 8-lead DIP package. The detector has a three state output stage that provides source drive and sink drive, and built-in schmitt trigger. The detector IC has an internal shield that provides a guaranteed common mode transient immunity of 1000V / μs. The TLP558 is inverter logic type. For buffer logic type, TLP555 is in line-up.

Parametrics

TLP558 absolute maximum ratings: (1)LED forward current IF: 10 mA; (2)LED peak transient forward current (Note 1)IFPT: 1 A; (3)LED reverse voltage VR: 5 V; (4)Detector output current IO: 40 / -25 mA; (5)Detector peak output current (Note 2)IOP: 80 / -50 mA; (6)Detector output voltage VO: -0.5~20 V; (7)Detector supply voltage VCC: -0.5~20 V; (8)Detector three state enabel voltage VE: -0.5~20 V; (9)Detector output power dissipation (Note 3)PO: 100 mW; (10)Detector total package power dissipation (Note 4)PT: 200 mW; (11)Operating temperature range Topr: -40~85 °C; (12)Storage temperature range Tstg: -55~125 °C; (13)Lead solder temperature(10s)Tsol: 260 °C; (14)Isolation voltage(AC, 1min., R.H.≤ 60%, Ta=25°C)(Note 5)BVS: 2500 Vrms.

Features

TLP558 features: (1)Input current: IF=1.6mA(max.); (2)Power supply voltage: VCC=4.5~20V; (3)Switching speed: tpHL, tpLH=400ns(max.); (4)Common mode transient immunity: ±1000V / μs(min.); (5)Guaranteed performance over temperature: -25~85°C; (6)Isolation voltage: 2500Vrms(min.); (7)UL recognized: UL1577, file No. E67349.

Diagrams

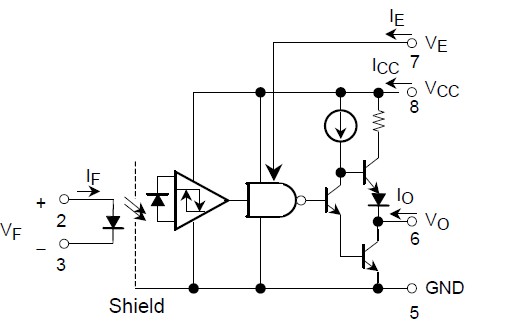

TLP558 pin connection
