Product Summary

The TL084CN is a general purposej-fet quad operational amplifier. The TL084CN is high speed J–FET input quad operation a amplifiers incorporating well matched, high voltageJ–FETand bipolar transistors in amonolithic integrated circuit.

Parametrics

TL084CN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input Voltage: ±15 V; (3)Differential Input Voltage: ±30 V; (4)Power Dissipation: 680 mW; (5)Output Short-circuit Duration: Infinite; (6)Operating Free Air Temperature Range: 0 to 70℃; (7)Storage Temperature Range: –65 to 150 ℃.

Features

TL084CN features: (1)wide common-mode (up to VCC+) and differential voltage range ; (2)low input bias and offset current ; (3)output short-circuit protection high input impedance j–fet input stage ; (4)internal frequency compensation ; (5)latch up free operation ; (6)high slewrate : 16V/μs (typ).

Diagrams

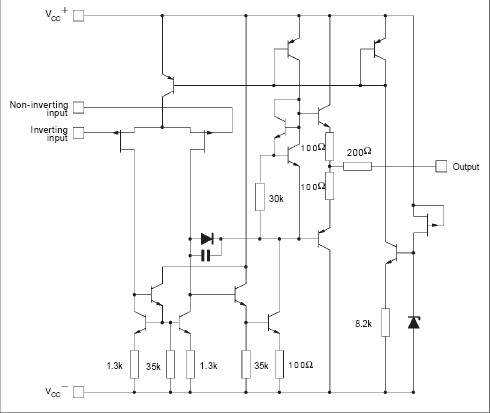

TL084CN block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

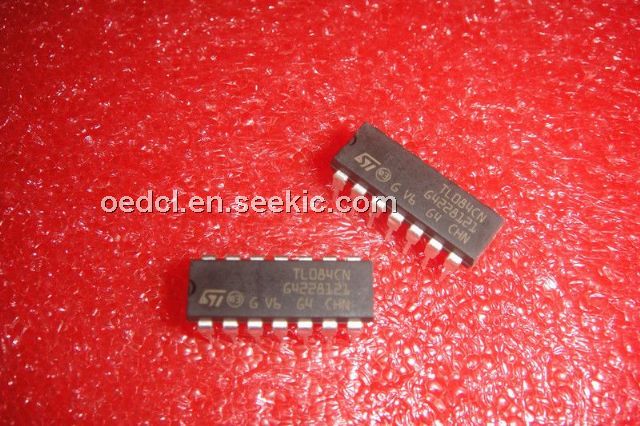

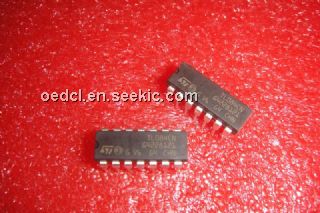

TL084CN
TL084CN
STMicroelectronics
Operational Amplifiers - Op Amps Quad Gen Purp JFET
Data Sheet
0-1: $0.35
1-10: $0.26
10-100: $0.22
100-250: $0.19
TL084CNE4
TL084CNE4
Texas Instruments
Operational Amplifiers - Op Amps Quad JFET-Input
Data Sheet
0-1: $0.34
1-25: $0.28
25-100: $0.23
100-250: $0.20
TL084CNSR
TL084CNSR
Texas Instruments
Operational Amplifiers - Op Amps Quad JFET Neg Input
Data Sheet
0-1: $0.35
1-25: $0.26
25-100: $0.22
100-250: $0.19
TL084CNSRG4
TL084CNSRG4
Texas Instruments
Operational Amplifiers - Op Amps Quad JFET-Input
Data Sheet
0-1: $0.40
1-25: $0.28
25-100: $0.24
100-250: $0.19
