Product Summary

The TE28F160 is a 3 Volt advanced boot block flash memory.

supply voltage:2.5V to 3.3V
mounting type:surface mount
frequency:40MHz
output current:1mA
DC supply voltage:3 to 15VDC
DC input current:8.8mA
Logic Type:AND Gate
Operating Temperature:-40°C ~ 85°C
Total RAM Bits:1872 Kbits
Package:TSOP

Parametrics

TE28F160 absolute maximum ratings: (1)Extended operating temperature, during read: -40 ℃ to +85 ℃; During block erase and program: -40 ℃ to +85 ℃; Temperature under bias: -40 ℃ to +85 ℃; (2)Storage temperature: -65 ℃ to +125 ℃; (3)Voltage on any pin (except VCC, VCCQ and VPP) with respect to GND: -0.5 V to +3.7 V; (4)VPP voltage (for block erase and program) with respect to GND: -0.5 V to +13.5 V; (5)VCC and VCCQ supply voltage with respect to GND: -0.2 V to +3.7 V; (6)Output short circuit current: 100 mA.

Features

TE28F160 features: (1)Flexible smart voltage technology; (2)2.7 V or 1.65 V I/O option; (3)High performance; (4)Optimized block sizes; (5)Block locking; (6)Low power consumption; (7)Absolute hardware-protection; (8)Extended temperature operation; (9)Automated program and block erase; (10)x8 not recommended for new designs; (11)4-Mbit density not recommended for new designs.

Diagrams

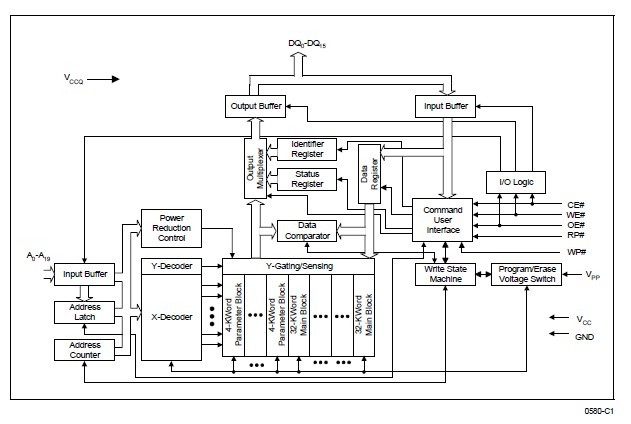

TE28F160 pin connection
