Product Summary

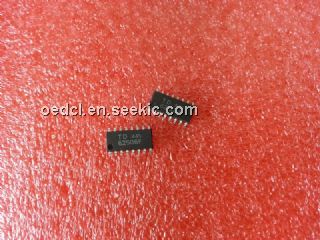

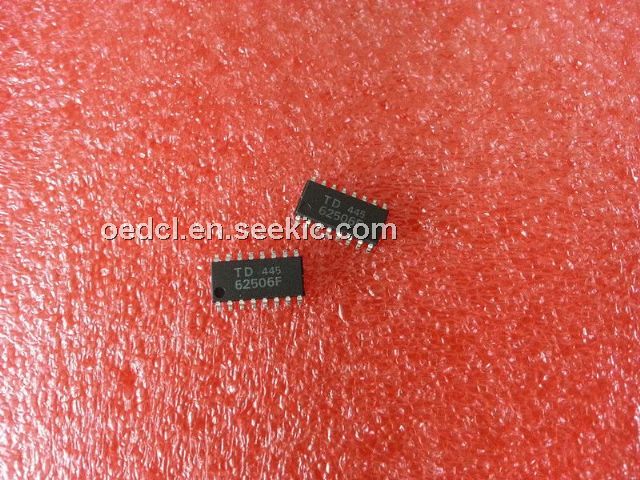

The TD62506F is a bipolar digital integrated circuit. The TD62506F is comprised of seven or five NPN transistor arrays. For proper operation, the substrate (SUB) must be connected to the most negative voltage. Applications of the TD62506F include relay, hammer, lamp and display (LED) drivers. The suffix (G) appended to the part number represents a Lead (Pb)-Free product.
Parametrics
TD62506F absolute maximum ratings: (1)Collector-emitter voltage, VCEO: 35 V; (2)Collector-base voltage, VCBO: 50 V; (3)Collector current, IC: 200 mA/ch; (4)Input voltage, VI:-0.5 to 30 V; (5)Input current, IIN: 25 mA; (6)Isolation voltage, VSUB: 35 V; (7)Power dissipation, PD: 0.625W; (8)Operating temperature, Topr: -40 to 85℃; (9)Storage temperature, Tstg: -55 to 150℃.
Features
TD62506F features: (1)Output current (single output) 200 mA (max); (2)High sustaining voltage output 35 V (min); (3)Inputs compatible with various types of logic.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TD62506FG |
Other |
|
Data Sheet |
Negotiable |
|
||||
