Product Summary

The STPS30170CT is a high voltage power schottky rectifier.

Parametrics

STPS30170CT absolute maximum ratings: (1)VRRM Repetitive peak reverse voltage: 170 V; (2)IF(RMS)RMS forward current: 30 A; (3)IF(AV)Average forward current δ = 0.5 TO-220FPAB Tc = 120 ℃ Per diode Per device: 15 A; (4)IF(AV)Average forward current δ = 0.5 TO-220AB /Tc = 120 ℃: 15A; (5)IF(AV)Average forward current δ = 0.5 D2PAK Tc = 155 ℃: 15A; (6)IF(AV)Average forward current δ = 0.5 TO-247 30 Tc = 155 ℃: 30A; (7)IFSM Surge non repetitive forward current tp = 10ms sinusoidal: 220 A; (8)PARM Repetitive peak avalanche power tp = 1μs Tj = 25 ℃: 10500 W; (9)Tstg Storage temperature range: -65 to + 175 ℃; (10)Tj Maximum operating junction temperature: 175 ℃; (11)dV/dt Critical rate of rise of reverse voltage: 10000 V/μs.

Features

STPS30170CT features: (1)High junction temperature capability; (2)Low leakage current; (3)Good trade off between leakage current and forward voltage drop; (4)Insulated package: TO-220FPAB Insulating voltage: 2000 V DC Capacitance: 45 pF; (5)Avalanche specification.

Diagrams

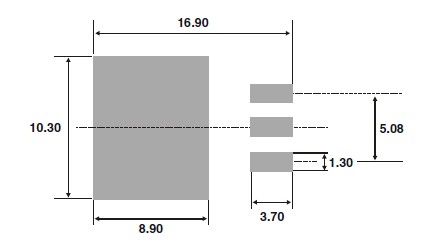

STPS30170CT pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

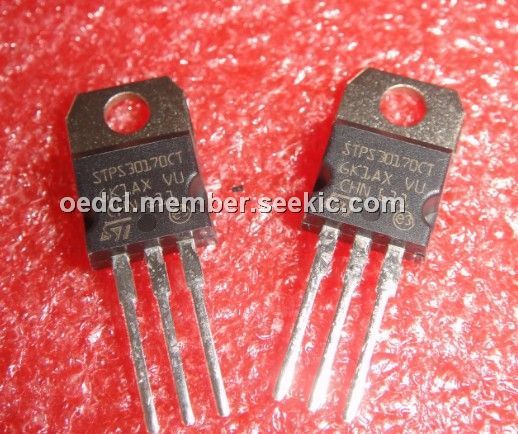

STPS30170CT
STPS30170CT
STMicroelectronics
Schottky (Diodes & Rectifiers) SCHOTTKY RECTIFIER
Data Sheet
Negotiable
