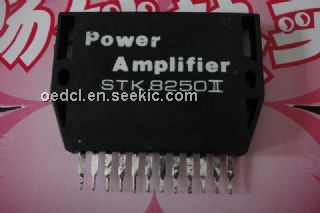

Product Summary

The STK8250II is a output stage of AF power AMP.

Parametrics

STK8250II absolute maximum ratings: (1)Max Supply Voltage: ±55V; (2)Junction Temperature: 150℃; (3)Storage Temperature: -30 to +105℃; (4)Thermal Resistance: 1.6Ω.

Features

STK8250II features: (1)IMST system; (2)Output stage for AF high power amplifier; (3)Dual power supply; (4)Darlington type pure/quasi-complementary circuit; (5)These same pin assignment and pin interval lead to standardize a printed board.; (6)Metal substrate use IMST@ makes good thermal stability; (7)Able to design freely previous section of power amplifier. This leads tone control designing.

Diagrams

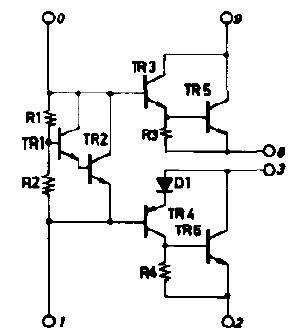

STK8250II block diagram
