Product Summary

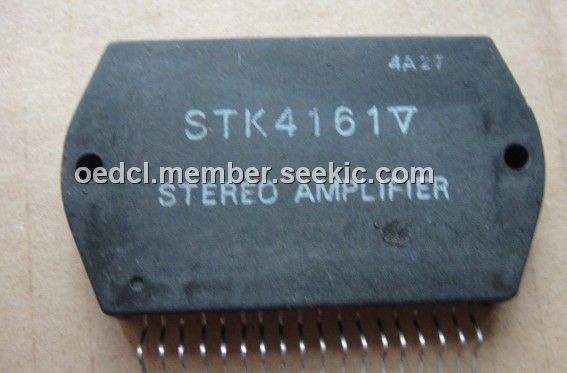

The STK4161V is an AF power amplifier.
Parametrics
STK4161V absolute maximum ratings: (1)Maximum supply voltage VCC max: ±46 V; (2)Thermal resistance qj-c: 2.1℃/W; (3)Junction Temperature Tj: 150℃; (4)Operating substrate temperature Tc: 125 ℃; (5)Storage temperature Tstg: -30 to +125 ℃; (6)Available time for load short-circuit ts VCC = ±30.5V, RL = 8 W, f = 50Hz, Po = 35W: 2 s.
Features
STK4161V features: (1)Pin-compatible with the STK4102II series. The STK4101V series use the same package and are available for output 15W to 50W; (2)Built-in muting circuit to cut off various kinds of pop noise; (3)Greatly reduced heat sink due to substrate temperature 125℃ guaranteed; (4)Distortion 0.08% due to current mirror circuit; (5)Excellent cost performance.

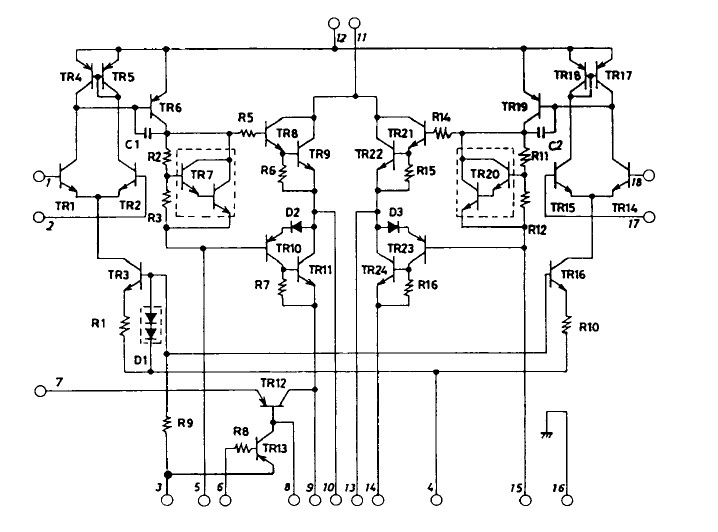

Diagrams
 |
