Product Summary

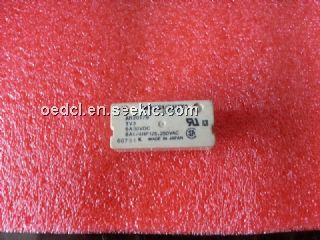

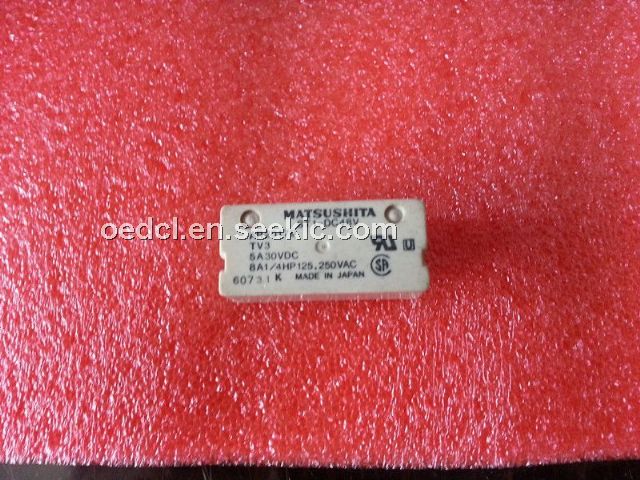

The st1-dc48v is an IC drivable PC board relay for field load switching. Applications of the st1-dc48v include: Sequence controllers, facsimiles, telephone controls, remote control security devices and security equipment.
Parametrics
st1-dc48v absolute maximum ratings: (1) Initial contact resistance, max.: 30mΩ; (2) Max. switching power: 2,000 VA, 150 W; (3) Max. switching voltage: 380 V AC, 30 V DC; (4) Max. switching current: 8A.
Features
st1-dc48v features: (1) Sealed to meet the combination progress of automatic wave soldering and cleaning needs; (2) Latching types available; (3) High switching capacity and high sensitivity in subminiature size 150 mW pick-up, 8 A inrush capacity: 51 A for 1a1b, 35 A for 2a; (4) High shock and vibration resistance Shock: 20 G, Vibration: 10 to 55 Hz at double amplitude of 2 mm.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ST1-DC48V |
Panasonic Electric Works |
General Purpose / Industrial Relays 8A 48VDC 1FORMA/1FORMB PCB |
Data Sheet |
|
|
||||||||||||
|
ST1-DC48V-F |
Panasonic Electric Works |
General Purpose / Industrial Relays 8A 48VDC 1FORMA/1FORMB PCB |
Data Sheet |
|
|
||||||||||||
