Product Summary
The SRM2016C is a 2048 words ×8 bits asynchronous, static, random access memory on a monolithic CMOS chip. Its very low standby power requirement makes the SRM2016C ideal for applications requiring non-volatile storage with back-up batteries. The asynchronous and static nature of the memory requires no external clock or refreshing circuit. Both the input and output ports are TTL compatible and the 3-stare output allows easy expansion of memory capacity.
Parametrics
SRM2016C absolute maximum ratings: (1)Supply voltage: -0.5V to 7.0V; (2)Input voltage: -0.5V to 7.0V; (3)Input/Output voltage: -0.5V t VDD+0.3V; (4)Power Dissipation: 1.0W; (5)Operating temperature: 0 to 70℃; (6)Storage temperature: -65 to 150℃; (7)Soldering temperature and time: 260℃, 10s.
Features
SRM2016C features: (1)Access time: 100ns; (2)low supply current: 30mA; (3)Complete static operation; (4)single power supply: 5V ±10%; (5)TTL compatible inputs and outputs; (6)3-state output with wired-OR capability; (7)Non-volatile storage with back-up batteries; (8)Package: 24-pin DIP.

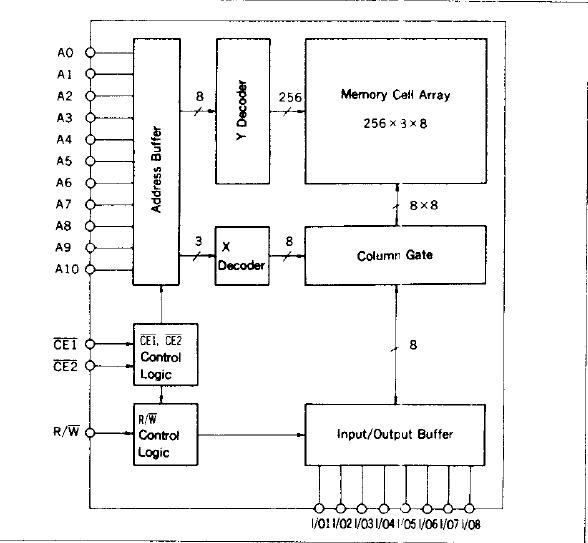

Diagrams
 |
