Product Summary

The SN751178 is a dual differential driver and receiver. The SN751178 dual differential driver and receiver are monolithic integrated circuits that are designed for balanced multipoint bus transmission at rates up to 10 Mbit/s. They are designed to improve the performance of full-duplex data communications over long bus lines and meet ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.10 and V.11.

Parametrics

SN751178 absolute maximum ratings: (1)Supply voltage, VCC (see Note 1): 7 V; (2)Input voltage, VI (DE, RE, and D inputs): 7 V; (3)Receiver input voltage range, VI (A or B inputs): –25 V to 25 V; (4)Receiver differential input voltage range, VID (see Note 2): –25 V to 25 V; (5)Driver output voltage range, VO: –10 V to 15 V; (6)Receiver low-level output current, IOL: 50 mA; (7)Package thermal impedance, qJA (see Note 3): 78℃/W; (8)Storage temperature range, Tstg: –65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

SN751178 features: (1)Meet or Exceed the Requirements of ANSI Standards TIA/EIA-422-B and TIA/EIA-485-A and ITU Recommendations V.10 and V.11; (2)Designed for Multipoint Bus Transmission on Long Bus Lines in Noise Environments; (3)Driver Positive- and Negative-Current Limiting; (4)Thermal Shutdown Protection; (5)Driver 3-State Outputs; (6)Receiver Common-Mode Input Voltage Range of –12 V to 12 V; (7)Receiver Input Sensitivity . . . ±200 mV; (8)Receiver Hysteresis . . . 50 mV Typ; (9)Receiver Input Impedance . . . 12 kW Min; (10)Receiver 3-State Outputs (SN751177 Only); (11)Operate From Single 5-V Supply.

Diagrams

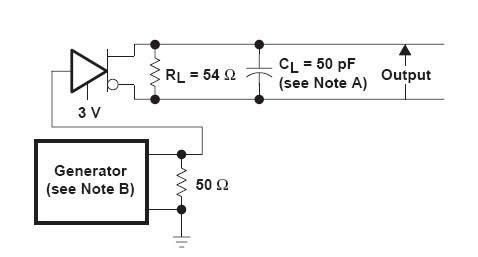

SN751178 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN751178
SN751178

Other


Data Sheet

Negotiable
SN751178N
SN751178N

Texas Instruments

Bus Transceivers Dual Diff Driver

Data Sheet

0-1: $1.65
1-25: $1.33
25-100: $1.20
100-250: $1.06
SN751178NSR
SN751178NSR

Texas Instruments

Bus Transceivers Diff

Data Sheet

0-1: $1.72
1-25: $1.39
25-100: $1.25
100-250: $1.08
SN751178NE4
SN751178NE4

Texas Instruments

Bus Transceivers Dual Diff Pairs Driver/Receiver

Data Sheet

0-1: $1.51
1-25: $1.22
25-100: $1.10
100-250: $1.00
SN751178NSRG4
SN751178NSRG4

Texas Instruments

Bus Transceivers Dual Diff Pairs Driver/Receiver

Data Sheet

0-1430: $0.76
1430-2000: $0.72
2000-5000: $0.69
5000-10000: $0.67
SN751178NSRE4
SN751178NSRE4

Texas Instruments

Bus Transceivers Dual Diff Pairs Driver/Receiver

Data Sheet

0-1430: $0.76
1430-2000: $0.72
2000-5000: $0.69
5000-10000: $0.67
