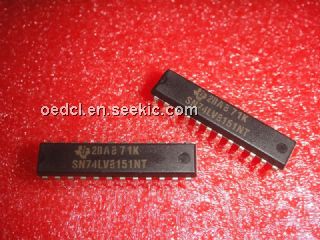

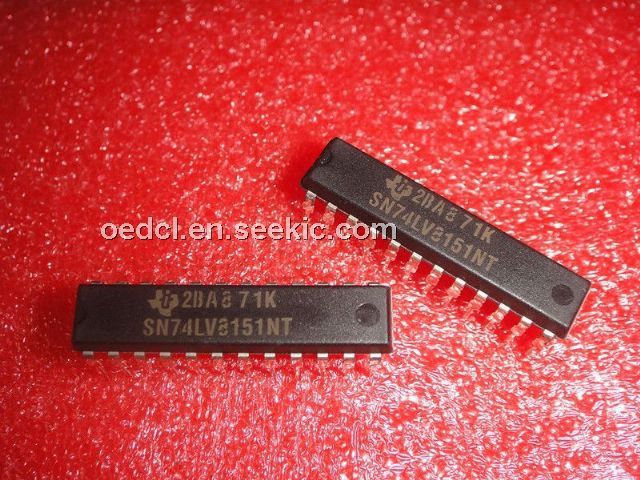

SN74LV8151NT

10-bit universal schmitt-trigger buffer, ±35mA, 5.5V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.70 / Piece

PartNumber:: SN74LV8151NT

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-14

From Other Seller

Part Number:SN74LV8151NT
US $1.70 - 2.00
Quantity:

piece

Product Summary

The sn74lv8151nt is a 10-bit universal Schmitt-trigger buffer with 3-state outputs. The sn74lv8151nt is designed for 2-V to 5.5-V VCC operation. The logic control (T/C) pin of the sn74lv8151nt allows the user to configure Y1 to Y8 as noninverting or inverting outputs. When output-enable (OE) input is low, the sn74lv8151nt passes data from Dn to Yn. When OE is high, the Y outputs of the sn74lv8151nt are in the high-impedance state. The sn74lv8151nt is fully specified for partial-power-down applications using Ioff.

Parametrics

sn74lv8151nt absolute maximum ratings: (1) Supply voltage range, VCC: -0.5 to 7V; (2) Input voltage range, VI: -0.5 to 7V; (3) Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 to 7V; (4) Output voltage range, VO: -0.5 to Vcc +0.5V; (5) Input clamp current, IIK (VI <0) : -20mA; (6) Output clamp current, IOK (VO<0) : -50mA; (7) Continuous output current, IO (VO= 0 to VCC) : ±35mA; (8) Continuous current through VCC or GND: ±70mA; (9) Storage temperature range, Tstg: -65 to +150°C.

Features

sn74lv8151nt features: (1) 2-V to 5.5-V VCC Operation; (2) Max tpd of 15ns at 5V; (3) Schmitt-Trigger Inputs Allow for Slow Input Rise/Fall Time; (4) Polarity Control for Y Outputs Selects True or Complementary Logic; (5) Typical VOLP (Output Ground Bounce) <0.8V at Vcc=3.3V, TA=25°C; (6) Typical VOHV (Output VOH Undershoot) >2.3 V at Vcc=3.3C, TA=25°C; (7) Ioff Supports Partial-Power-Down Mode Operation; (8) Supports Mixed-Mode Voltage Operation on All Ports; (9) Latch-Up Performance Exceeds 250 mA Per JESD 17; (10) ESD Protection Exceeds JESD 22.
