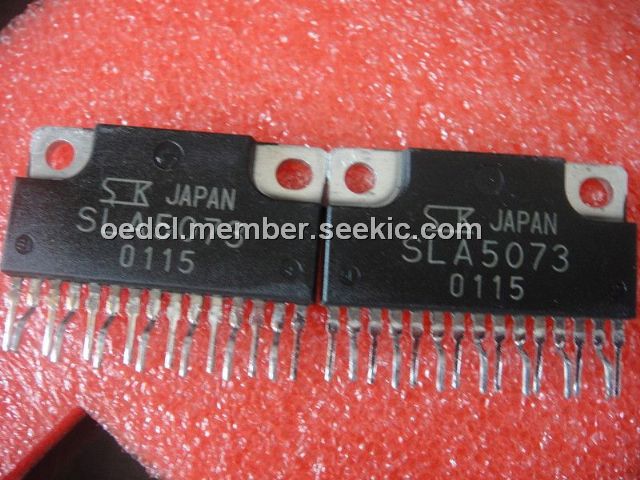

The SLA5073 is an N-channel 5-phase motor drive.
Parametrics
SLA5073 absolute maximum ratings: (1)VDSS: 60 V; (2)VGSS: ±20 V; (3)ID: 5A; (4)ID(pulse): 8A at PW≤1ms, Du≤25%; (5)θ j-a: 26℃/W at Junction-Air, Ta=25℃, with all circuits operating; (6)θ j-c: 5℃/W at Junction-Case, Tc=25℃, with all circuits operating; (7)VISO: 1000Vrms Between fin and lead pin, AC; (8)Tch: 150℃; (9)Tstg: –40 to +150℃; (10)PT: 4.8W at Ta=25℃; 25W at Tc=25℃.
Features
SLA5073 features: (1)V(BR)DSS: 60 V; (2)IGSS: ±100 nA; (3)IDSS: 100 μA; (4)VTH: 1.0 2.0 V; (5)Re(yfs): 5.5 S; (6)RDS(ON): 0.3Ω; (7)Ciss: 320 pF; (8)Coss: 160 pF; (9)Crss: 35 pF; (10)td(on): 16 ns; (11)tr: 65 ns; (12)td(off): 70 ns; (13)tf: 45 ns; (14)VSD: 1.2 V; (15)trr: 65 ns.
