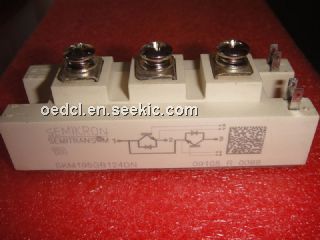

Product Summary

The skm195gb124dn is a low loss IGBT module. Applications of the skm195gb124dn include: switching (not for linear use) , switched mode power supplies, DC servo and robot drives, invertes, DC choppers, AC motor speed control, UPS uninterruptable power supplies, general power switching applications and electronics (also portable) welders.

Parametrics

skm195gb124dn absolute maximum ratings: (1) VCES: 1200V; (2) IC: 260 (180) A (Ta=25 (80) °C; (3) ICRM: 520 (360) A (Tc=25 (80) °C, tp=1ms) ; (4) VGES: ±20V; (5) Tvj, (Tstg) : -40 to +150 (125) °C; (6) Visol: 2500V (AC, 1 min.) .

Features

skm195gb124dn features: (1) n channel, homogeneous silicon structure NPT-IGBT (non punch-through) ; (2) low saturation voltage; (3) low inductance case; (4) low tail current with low temperature dependance; (5) high short circuit capability, self limiting to 6×Icnom; (6) fast&soft inverse CAL diodes; (7) without hard mould; (8) large clearance (10mm ) and creepage distance (20 mm) .

Diagrams

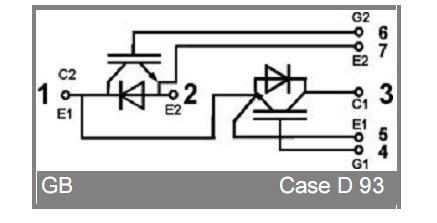

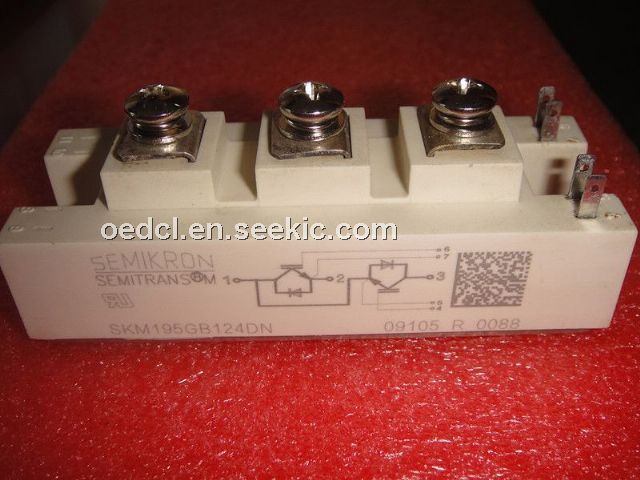

skm195gb124dn circuit
