Product Summary

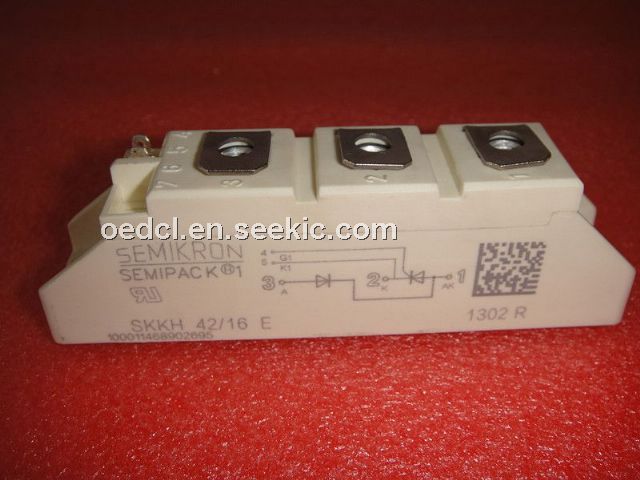

The skkh42/16e is a thyristor/diode module. Applications of the skkh42/16e include: AC motor softstarters, input converters for AC inverter drives, DV motor control, temperature control and professional light dimming.
Parametrics
skkh42/16e absolute maximum ratings: (1) VRSM: 1700V; (2) VRRM, VDRM: 1600V; (3) ITAV: 540A (390A) (sin. 180; Tc=85°C (100°C) ; (4) IGD: 10mA (Tvj=130°C; d.c) ; (5) IGT: 200mA (Tvj=25°C; d.c.) ; (6) Tvj: -40 to +130°C; (7) Tstg: -40 to +130°C.
Features
skkh42/16e features: (1) heat transfer through aluminium nitride ceramic isolated metal baseplate; (2) precious metal pressure contacts for high reliability; (3) UL recognized, file no. E 63 532.

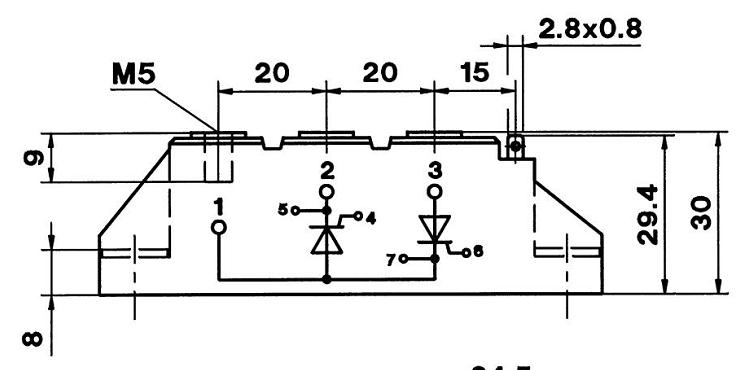

Diagrams
