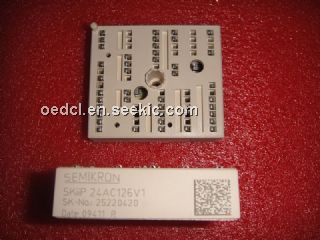

Product Summary

The skii24ac126v1 is a 3-phase bridge inverter. Applications of the skii24ac126v1 include: inverter up to 19kVA and typical motor power 11kW.

Parametrics

skii24ac126v1 absolute maximum ratings: (1) VCES: 1200V; (2) Ic: 52 (40) A (Ts=25 (70) °C; (3) ICRM: 70A (tp≤1ms) ; (4) VGES: ±20V; (5) Tj: -40 to +150°C; ItRMS: 100A (per power terminal (20A/spring) ) ; (6) Visol: 2500V (AC, 1 min.) .

Features

skii24ac126v1 features: (1) fast trench IGBTs; (2) robust and soft freewheelong diodes in CAL technology; (3) highly reliable spring contacts for electrical connections; (4) UL recognized file no. E63532.

Diagrams

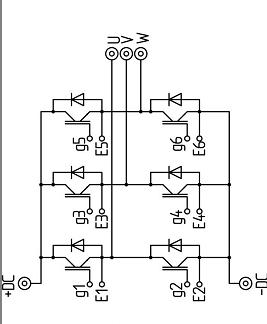

skii24ac126v1 circuit
