Product Summary

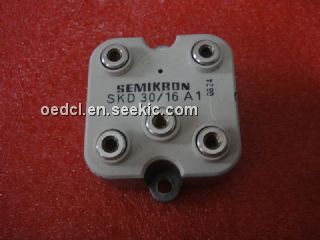

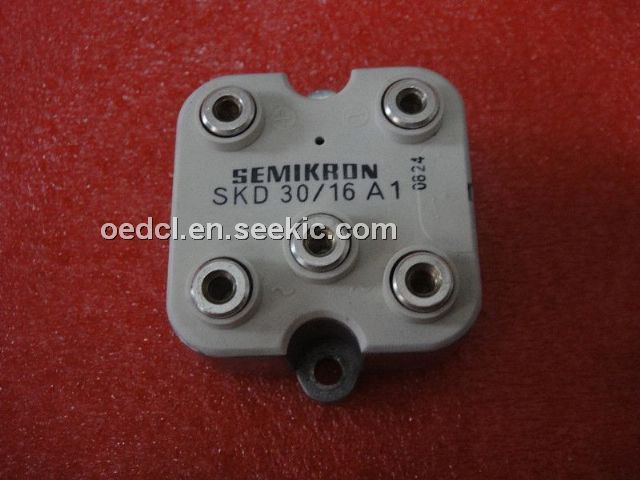

The SKD30/16 is a Power Bridge Rectifier. The applications of the SKD30/16 include Three phase rectifiers for power supplies, Input rectifiers for variable frequency drives, Rectifiers for DC motor field supplies and Battery charger rectifiers.

Parametrics

SKD30/16 absolute maximum ratings: (1)ID: 6.5A; (2)IFSM: 370A; (3)VF: 2.2V; (4)rT: 12mΩ; (5)IRD: 300μA; (6)trr: 25μs.

Features

SKD30/16 features: (1)Isolated metal case with screw terminals; (2)Blocking voltage up to 1600V; (3)High surge currents; (4)Easy chassis mounting; (5)UL recognized, file no. E 63 532.

Diagrams

SKD30/16 dimension
