Product Summary

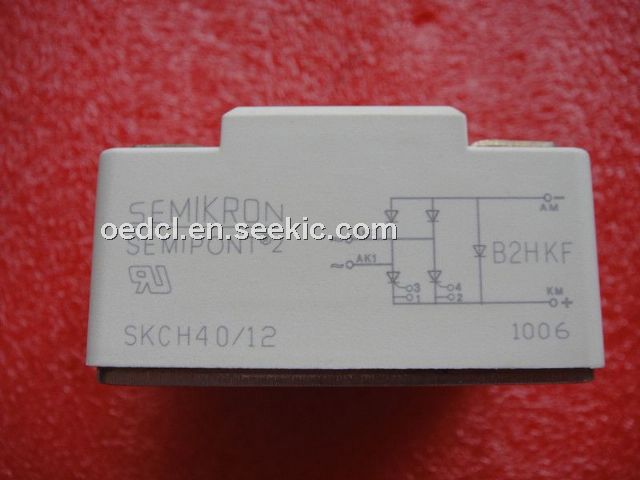

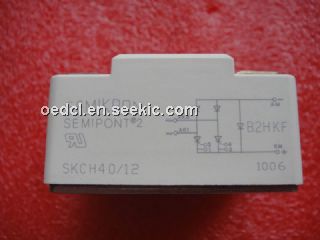

The SKCH40/12 is a Controllable Bridge Rectifier. The applications of the SKCH40/12 include For DC drives with a fixed direction of rotation, Controlled field rectifiers for DC motors and Controlled battery charger rectifiers.

Parametrics

SKCH40/12 absolute maximum ratings: (1)ID: 46A; (2)ITSM: 470A; (3)VT: 2.3V; (4)rT: 16mΩ; (5)IDD: 10mA; (6)tgd: 1μs; (7)Tvj: -40 to +125℃.

Features

SKCH40/12 features: (1)Fully controlled single phase bridge rectifier; (2)Robust plastic case with screw terminals; (3)Large, isolated base plate; (4)Blocking voltage to 1600V; (5)High surge currents; (6)Easy chassis mounting.

Diagrams

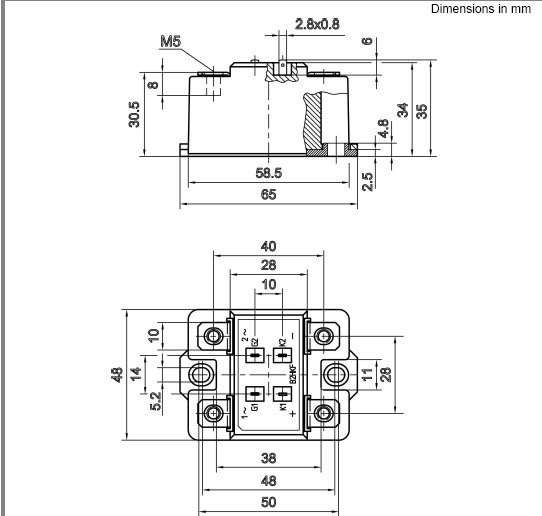

SKCH40/12 dimension
