Product Summary

The SG1524J is a PWM switching regulator control circuit contains all the essential circuitry to implement single-ended or push-pull switching regulators. Applications of the SG1524J include: switching power supplies, motor speed control and off-line power converter.

Parametrics

SG1524J absolute maximum ratings: (1) input voltage: 40V; (2) reference output current: 50mA; (3) output current (each output) : 100mA; (4) oscillator charging current ( pin 6 or 7) : 5mA; (5) internal power dissipation: 1W; (6) operating temperature range: -55 to +125℃; (7) storage temperature range: -65 to +150℃; (8) Lead temperature (soldering, 10 sec.) : 300℃.

Features

SG1524J features: (1) guranteed +/-2% reference tolerance; (2) guranteed +/- 6% oscillator tolerance; (3) guranteed 10mv/1000Hrs long term stability; (4) operates above 100kHz.

Diagrams

SG1524J Circuit Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

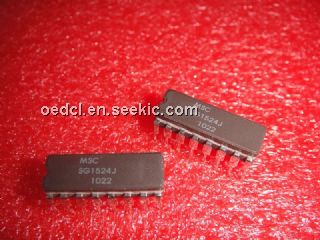

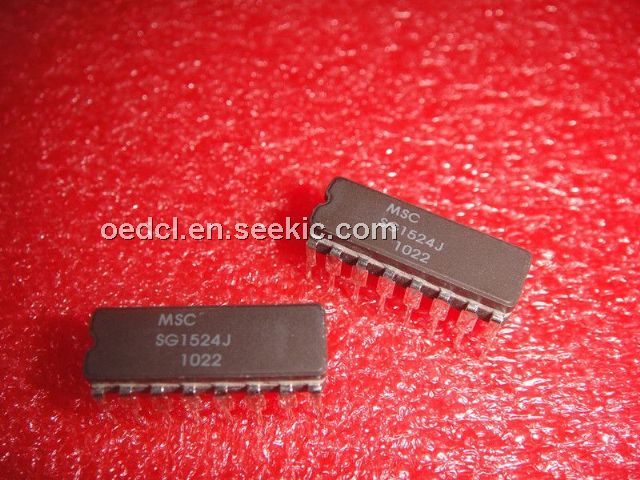

SG1524J
SG1524J

IC REG CTRLR DOUBLER PWM 16-DIP
Data Sheet
0-1: $6.75
1-10: $6.08
10-100: $5.00
100-250: $4.59
250-500: $4.19
500-1000: $3.65
1000-2500: $3.51
2500-5000: $3.38
