Product Summary

The SCF1500H120 is a flat pack thyristor designed for high power rectification and control. Its applications include high power rectifier, leonard rectifier, welding power supply, power supply for metal surface treatment.

Parametrics

SCF1500H120 absolute maximum ratings: (1)repetitive peak reverse voltage: 1200V; (2)non-repetitive peak reverse voltage: 1300V; (3)repetitive peak off-state voltage: 1200V; (4)average on-state current: 1500A; (5)R.M.S. on-state current: 2350A.

Features

SCF1500H120 features: (1)IDRM: 50mA; (2)Gate trigger current: 300mA; (3)peak on-state voltage: 1.75V; (4)holding current: 500mA.

Diagrams

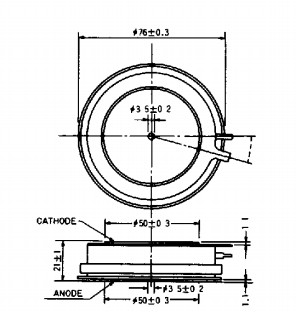

SCF1500H120 digram
