SAA5667HL/M1

Product Summary

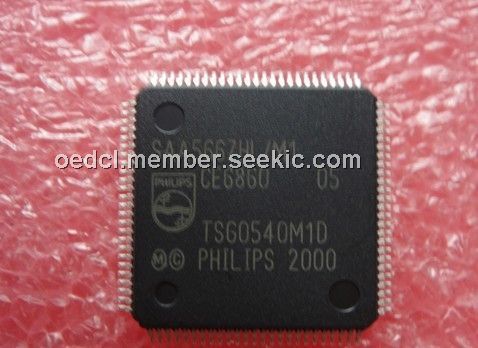

The SAA5667HL/M1 is an enhanced TV microcontroller with on-screen display (OSD). The SAA5667HL/M1 is intended for use as the central control mechanism in a television receiver. The SAA5667HL/M1 provides control functions for the television system, OSD and incorporate an integrated Data Capture and display function for either Teletext or Closed Caption. The SAA5667HL/M1 offers all the features from the SAA56xx family with the addition of support for a range of Progressive Scan display modes.

Parametrics

SAA5667HL/M1 absolute maximum ratings: (1)VDDX supply voltage (all supplies): -0.5 to +4.0 V; (2)VI input voltage (any input): -0.5 (VDD + 0.5)or 4.1 V; (3)VO output voltage (any output): -0.5 to VDD + 0.5 V; (4)IO output current (each output): 10 mA; (5)IIOK DC input or output diode current: 20 mA; (6)Tj junction temperature: -20 to +125 ℃; (7)Tstg storage temperature: -55 to +125 ℃.

Features

SAA5667HL/M1 features: (1)Single-chip higher frequency microcontroller with integrated On-Screen Display (OSD); (2)Support for 50/60 Hz, 100/120 Hz and Progressive Scan display modes; (3)Versions available with integrated Data Capture; (4)Both active HIGH and active LOW reset pins; (5)OTP memory for both Program ROM and character sets; (6)Easy connection of external ROM; (7)In-System Programming (ISP)option for the embedded OTP memories using IEEE1149 (JTAG: Joint Test Action Group)interface; (8)Single power supply: 3.0 to 3.6 V; (9)5 V tolerant digital inputs and I/O; (10)32 I/O ports via individual addressable controls; (11)Larger Character ROM, up to 1020 characters of 12 ×10 pixels; (12)Smoothing capability on sized characters; (13)Programmable I/O for push-pull, open-drain and quasi-bidirectional and high-impedance; (14)Two port lines with 8 mA sink (at <0.4 V)capability, for direct drive of LED; (15)Single crystal oscillator for microcontroller, OSD and Data Capture; (16)Power reduction modes: Idle, Standby and Power-down; (17)Byte level I2C-bus up to 400 kHz dual port I/O; (18)64 Dynamically Redefinable Characters for OSDs; (19)Increased special graphic characters allowing four colours per character; (20)Selectable character height 9, 10, 13 and 16 TV lines; (21)Pin compatibility throughout family Operating temperature: -20 to +70 ℃.

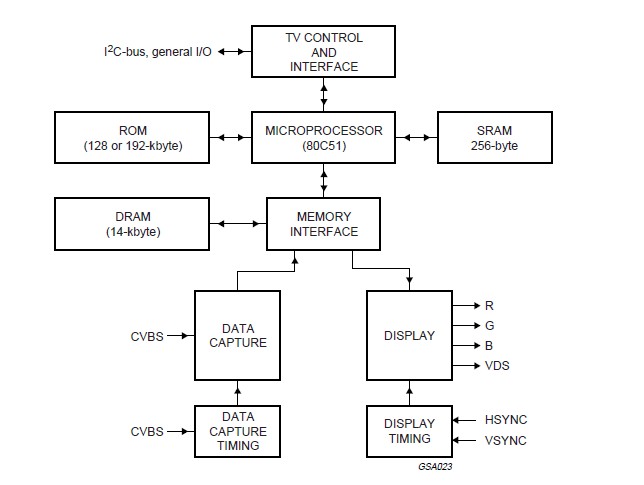

Diagrams
