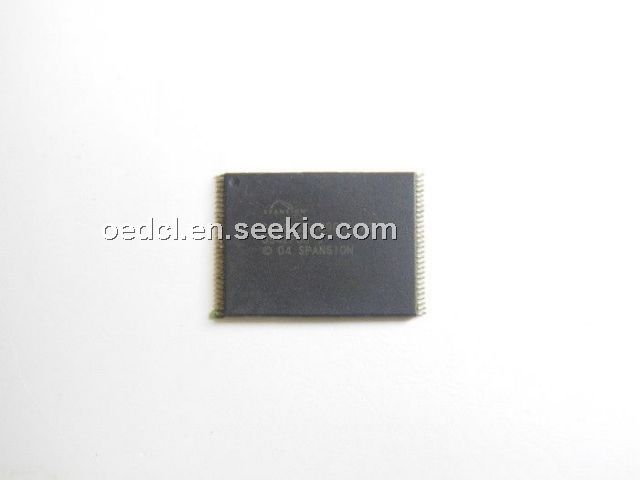

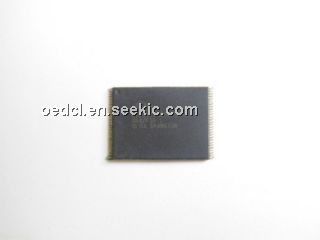

S29GL256N90TFIR2

S29GL256N90TFIR2, flash memory, 200 mA, 12.5 V, 5 MHz, TSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.80~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	2.00 / Piece
26 ~ 100 :	1.80 / Piece

PartNumber:: S29GL256N90TFIR2

Brand:: SPANSION - spansion | Pack: TSOP | D/C: 00+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-26

From Other Seller

Part Number:S29GL256N90TFIR2
US $1.80 - 2.00
Quantity:

piece

Product Summary

The S29GL256N90TFIR2 is the 3.0V single power flash memory manufactured using 110 nm MirrorBit technology. The S29GL256N90TFIR2 is a 256 Mbit, organized as 16,777,216 words or 33,554,432 bytes. The S29GL256N90TFIR2 has a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The device can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL256N90TFIR2 absolute maximum ratings: ( 1)Storage Temperature, Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1):–0.5 V to +4.0 V; (4)VIO: –0.5 V to +4.0 V; (5)A9, OE#, ACC and RESET# (Note 2): –0.5 V to +12.5 V; (6)All other pins (Note 1): –0.5 V to +12.5 V; (7)Output Short Circuit Current (Note 3): 200 mA.

Features

S29GL256N90TFIR2 features: (1)Single power supply operation; (2)Enhanced VersatileI/O control; (3)Manufactured on 110 nm MirrorBit process technology; (4)SecSi (Secured Silicon) Sector region; (5)Flexible sector architecture; (6)Compatibility with JEDEC standards; (7)100,000 erase cycles per sector typical; (8)20-year data retention typical; (9)Low power consumption (typical values at 3.0 V, 5 MHz); (10)Package options: 56-pin TSOP; 64-ball Fortified BGA.
