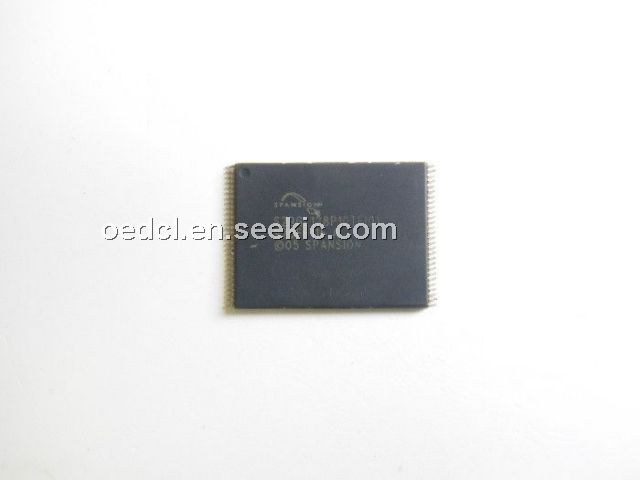

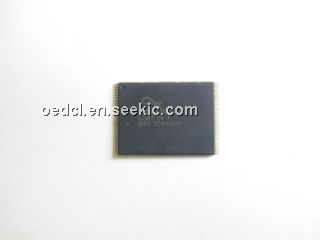

S29GL128P10TFI01

S29GL128P10TFI01, Page Mode Flash Memory, TSOP, -0.5 V to +4.0 V, 200mA, SPANSION

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.70~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	2.00 / Piece
20 ~ 100 :	1.70 / Piece

PartNumber:: S29GL128P10TFI01

Brand:: SPANSION - spansion | Pack: TSOP | D/C: 06+

Availability:: Supply Ability: 1/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Pamela's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-28

From Other Seller

Part Number:S29GL128P10TFI01
US $1.70 - 2.00
Quantity:

piece

Product Summary

The S29GL128P10TFI01 is a 3.0V single power flash memory manufactured using 110 nm MirrorBit technology. The S29GL128P10TFI01 is a 512 Mbit, organized as 33,554,432 words or 67,108,864 bytes. The S29GL128P10TFI01 is a 256 Mbit, organized as 16,777,216 words or 33,554,432 bytes. The device is a 128 Mbit, organized as 8,388,608 words or 16,777,216 bytes. The device has a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The S29GL128P10TFI01 can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL128P10TFI01 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC: -0.5 V to +4.0 V; VIO: -0.5 V to +4.0 V; (4)A9, OE#, and ACC: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC + 0.5V; (6)Output Short Circuit Current: 200 mA.

Features

S29GL128P10TFI01 features: (1)Single power supply operation, 3 volt read, erase, and program operations; (2)Enhanced VersatileI/O. control, All input levels (address, control, and DQ input levels) and outputs are determined by voltage on VIO input. VIO range is 1.65 to VCC; (3)Manufactured on 110 nm MirrorBit process technology; (4)Secured Silicon Sector region, 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number, accessible through a command sequence; May be programmed and locked at the factory or by; (5)the customer; (6)Flexible sector architecture, S29GL512N: Five hundred twelve 64 Kword (128 Kbyte) sectors; S29GL256N: Two hundred fifty-six 64 Kword (128 Kbyte) sectors; S29GL128N: One hundred twenty-eight 64 Kword (128 Kbyte) sectors.
