Product Summary
The S29GL032A90TFIR3 is a 3.0-Volt single-power Flash memory manufactured using 200 nm MirrorBit technology. The S29GL032A90TFIR3 requires only a single 3.0-Volt power supply for both read and write functions. In addition to a VCC input, a high-voltage accelerated program (ACC) feature provides shorter programming times through increased current on the WP#/ACC input. This feature of the S29GL032A90TFIR3 is intended to facilitate factory throughput during system production, but may also be used in the field if desired.
Parametrics
S29GL032A90TFIR3 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65°C to +150°C; (2)Ambient Temperature with Power Applied: -65°C to +125°C; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V, A9, OE#, ACC and RESET#: -0.5 V to +12.5 V, All other pins: -0.5 V to VCC+0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
S29GL032A90TFIR3 features: (1)Single power supply operation, 3 volt read, erase, and program operations; Manufactured on 200 nm MirrorBit process technology; Secured Silicon Sector region; 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number, accessible through a command sequence; May be programmed and locked at the factory or by; (2)the customer; (3)Flexible sector architecture, 64Mb (uniform sector models): 128 32 Kword (64 KB) sectors; 64Mb (boot sector models): 127 32 Kword (64 KB) sectors + 8 4Kword (8KB) boot sectors; 32Mb (uniform sector models): 64 32Kword (64KB) sectors; 32Mb (boot sector models): 63 32Kword (64KB) sectors + 8 4Kword (8KB) boot sectors.

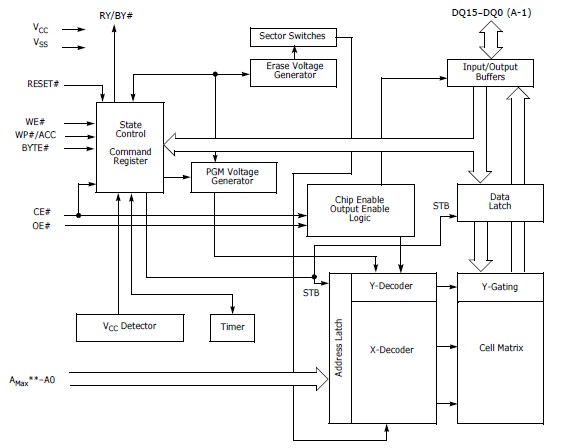

Diagrams
