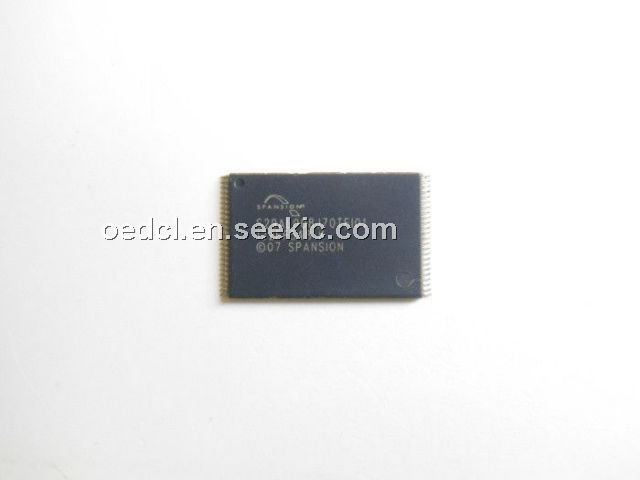

Product Summary
The S29AL008J70TFI01 is an 8 Mbit, 3.0 Volt-only Flash memory.It is organized as 1,048,576 bytes or 524,288 words. The S29AL008J70TFI01 is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. For more information, refer to publication number 21536. The word-wide data (×16) appears on DQ15–DQ0; the byte-wide (×8) data appears on DQ7–DQ0. This device requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.
Parametrics
S29AL008J70TFI01 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground: VCC (Note 1): -0.5V to +4.0V, A9, OE#, and RESET# (Note 2): -0.5V to +12.5V, All other pins (Note 1): -0.5V to VCC+0.5V; (4)Output Short Circuit Current (Note 3): 200mA.
Features
S29AL008J70TFI01 features: (1)Provides a software method of detecting program or erase operation completion; (2)Suspends an erase operation to read data from, or program data to, a sector that is not being erased, then resumes the erase operation; (3)Provides a hardware method of detecting program or erase cycle completion; (4)Hardware method to reset the device to reading array data.

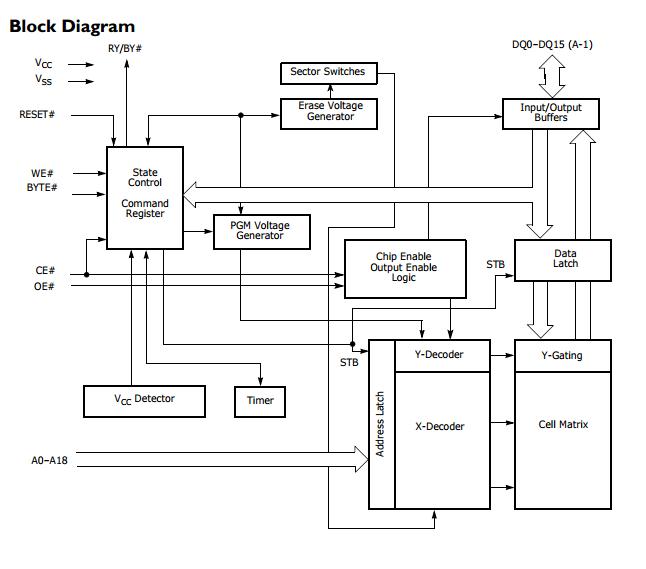

Diagrams
