Product Summary

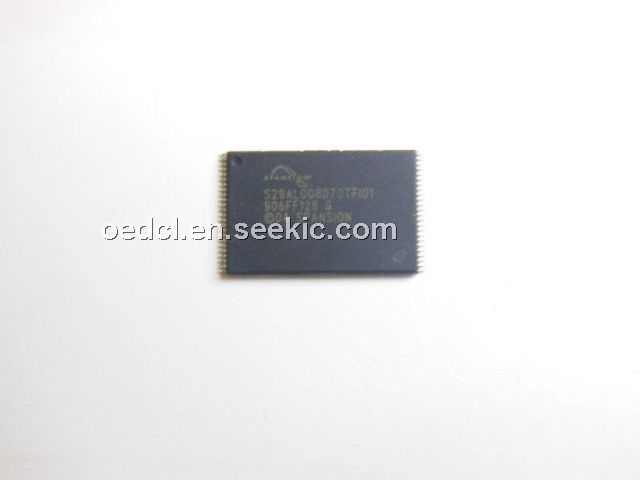

The S29AL008D70TFI01 is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The S29AL008D70TFI01 is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. For more information, refer to publication number 21536. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. The S29AL008D70TFI01 requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device. The S29AL008D70TFI01 is manufactured using Spansion 200nm process technology, and offers all the features and benefits of the Am29LV800B, which was manufactured using 0.32 μm process technology.

Parametrics

S29AL008D70TFI01 absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V; (4)A9, OE#, and RESET#: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC+0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

S29AL008D70TFI01 features: (1)2.7 to 3.6 volt read and write operations for batterypowered applications; (2)Access times as fast as 55 ns; (3)Extended temperature range (-40℃ to +125℃); (4)200 nA Automatic Sleep mode current; (5)200 nA standby mode current; (6)7 mA read current; (7)15 mA program/erase current.

Diagrams

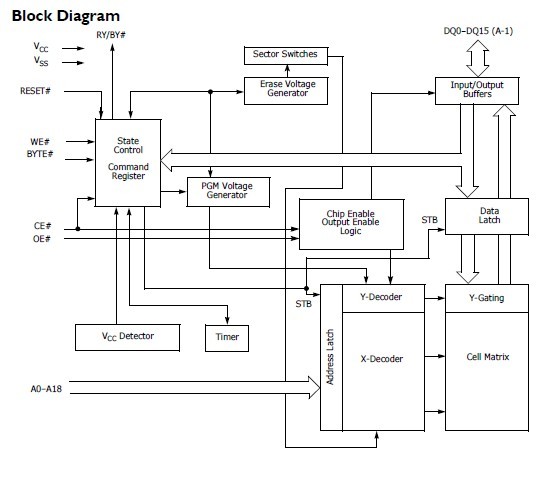

S29AL008D70TFI01 circuit diagram
