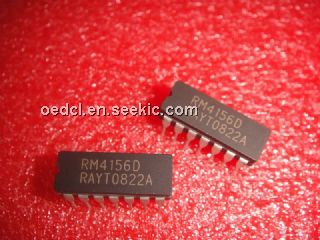

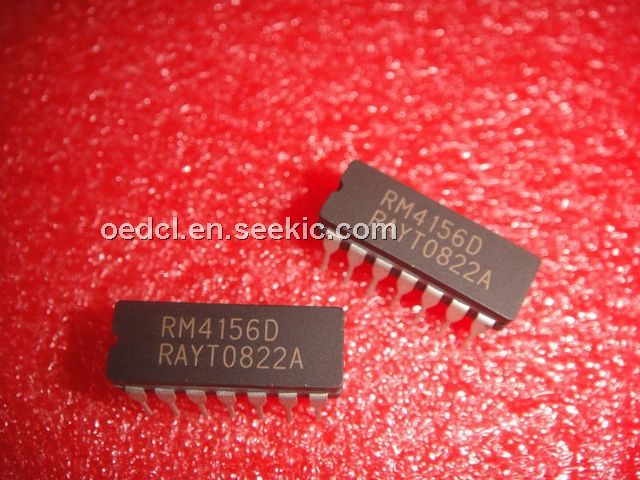

Product Summary

The RM4156D is a quad general-purpose operational amplifier with each amplifier electrically similar to the mA741 except that offset null capability is not provided. The high common-mode input voltage range and the absence of latch-up make these amplifiers ideal for voltage-follower applications. The RM4156D is short circuit protected and the internal frequency compensation ensures stability without external components.

Parametrics

RM4156D absolute maximum ratings: (1)Supply voltage VCC+: 22 V; (2)Supply voltage VCC: –22 V; (3)Differential input voltage: ±30 V; (4)Input voltage: ±15 V; (5)Operating free-air temperature range: –55 to 125°C; (6)Storage temperature range: –65 to 150°C; (7)Case temperature for 60 seconds FK package: 260°C; (8)Lead temperature 1,6 mm (1/16 inch)from case for 60 seconds J or W package: 300°C; (9)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds D or N package: 260°C.

Features

RM4156D features: (1)Continuous-Short-Circuit Protection; (2)Wide Common-Mode and Differential Voltage Ranges; (3)No Frequency Compensation Required; (4)Low Power Consumption; (5)No Latch-Up; (6)Unity Gain Bandwidth . . . 3 MHz Typ; (7)Gain and Phase Match Between Amplifiers; (8)Designed To Be Interchangeable With Raytheon RC4136, RM4136, and RV4136; (9)Low Noise: 8 nV/Hz Typ at 1 kHz.

Diagrams

RM4156D pin connection
