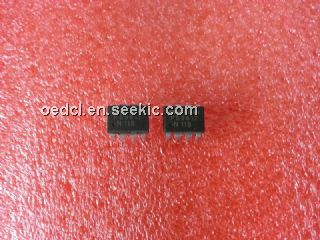

Product Summary

The PS9617 is a high noise reduction, high speed digital output type 8-Pin DIP photocoupler. The PS9617 is optically coupled isolator containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9617 is in a plastic DIP (dual in-line package). Applications are (1)FA Network; (2)Measurement equipment; (3)PDP.

Parametrics

PS9617 absolute maximum ratings: (1)Diode forward current IF: 30 mA; (2)Diode reverse voltage VR: 5 V; (3)Detector supply voltage VCC: 7 V; (4)Detector output voltage VO: 7 V; (5)Detector output current IO: 25 mA; (6)Detector power dissipation PC: 40 mW; (7)Isolation voltage BV: 5 000 Vr.m.s.; (8)Operating ambient temperature TA−40 to +85 °C; (9)Storage temperature Tstg: −55 to +125 °C.

Features

PS9617 features: (1)High common mode transient immunity (CMH, CML = ±20 kV/μs TYP.); (2)High isolation voltage (BV = 5 000 Vr.m.s.); (3)High-speed response (10 Mbps); (4)Pulse width distortion (tPHL − tPLH = 3 ns TYP.); (5)Open collector output; (6)Ordering number of tape product: PS9617L-E3, E4: 1 000 pcs/reel; (7)Safety standards: UL approved: File No. E72422; DIN EN60747-5-2 (VDE0884 Part2)approved No.40008906 (Option).

Diagrams

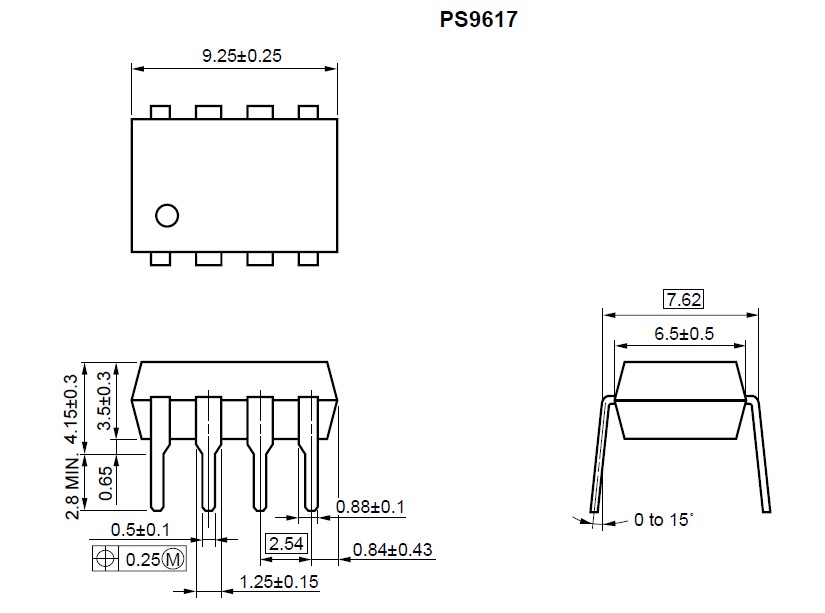

PS9617 pin connection
