Product Summary

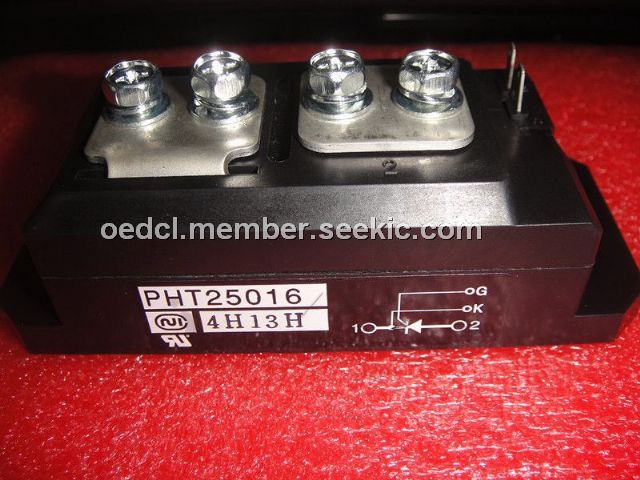

The PHT25016 is a Thyristor module.

Parametrics

PHT25016 absolute maximum ratings: (1)VDRM: 1600 V; (2)VDSM: 1700 V; (3)VRRM: 1600 V; (4)VRSM: 1700 V; (5)IO (AV): 250 A; (6)IT (RMS): 390 A; (7)ITSM: 4000 A; (8)I2t: 80000 A2s; (9)di/ dt: 100 A/μs; (10)PGM: 5 W; (11)PG (AV): 1 W; (12)IGM: 2 A; (13)VGM: 10 V; (14)VRGM: 5 V; (15)Tjw and Tstg: -40℃ to +125℃.

Features

PHT25016 features: (1)isolated base; (2)single thyristor module; (3)high surge capability; (4)UL recognized, file NO. E187184.

Diagrams

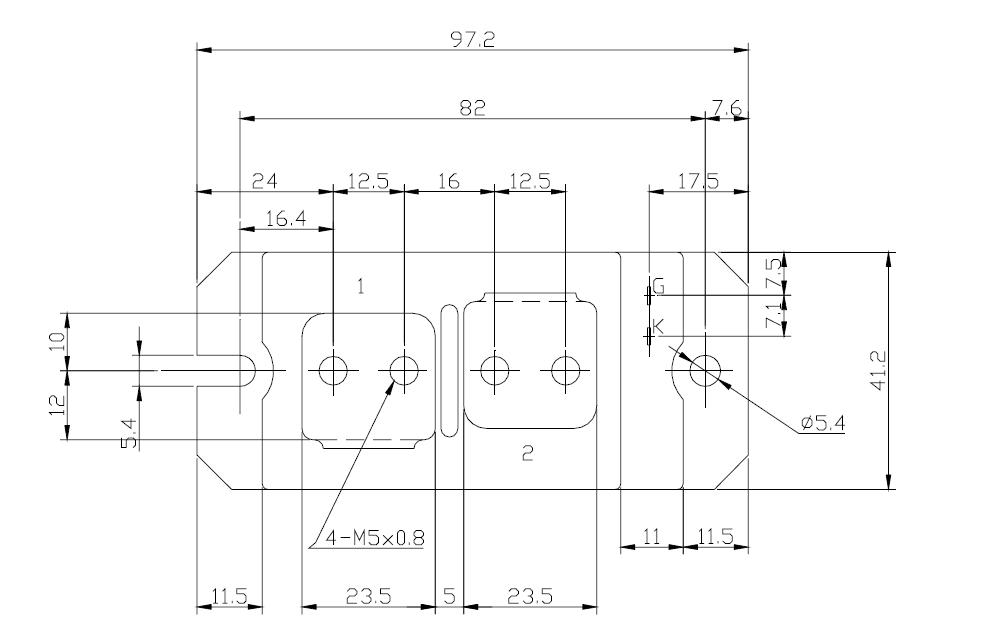

PHT25016 package dimensions
