Product Summary
The PDT10012 is a Thyristor Module. The application of the PDT10012 is Rectified For General Use.
Parametrics
PDT10012 absolute maximum ratings: (1)Repetitive Peak Off-State Voltage: 1200V; (2)Non Repetitive Peak Off-State Voltage: 1300V; (3)Repetitive Peak Reverse Voltage: 1200V; (4)Non Repetitive Peak Reverse Voltage: 1300V; (5)Peak Gate Power: 5W; (6)Average Gate Power:1W; (7)Peak Gate Current: 2A; (8)Peak Gate Voltage: 10V; (9)Operating JunctionTemperature Range: -40℃ to +125℃; (10)Storage Temperature Range: -40℃ to +125℃.
Features
PDT10012 features: (1)Isolated Base; (2)Dual Thyristors or Thyristor and Diode Cascaded Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

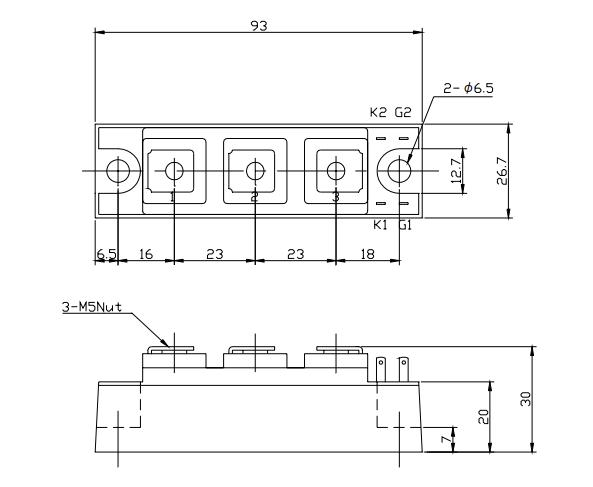

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

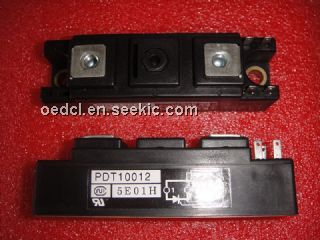

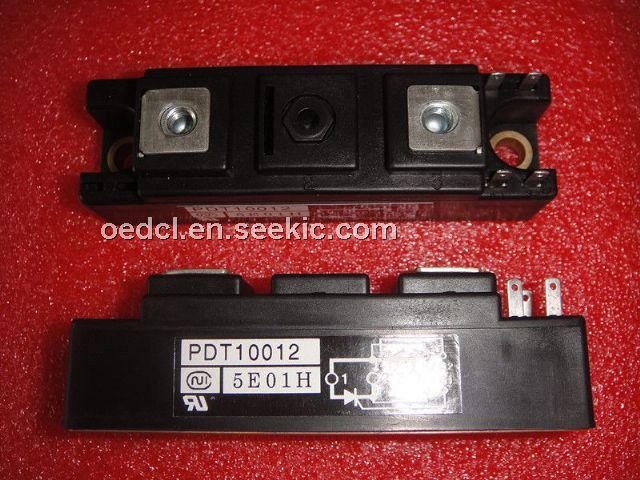

![]() PDT10012 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||
![]() |
![]() PDT10012 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
![]() |
![]() PDT10016 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
![]() |
![]() PDT1008 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||
![]() |

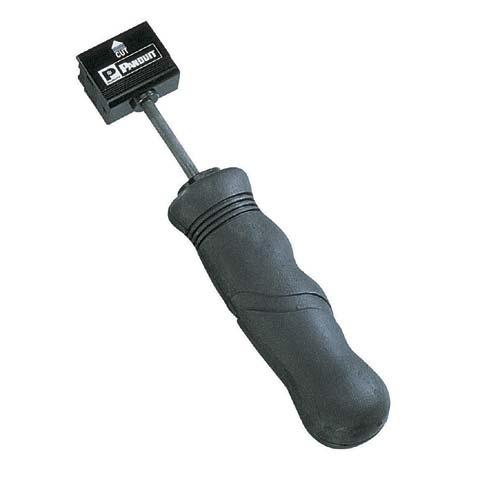

![]() PDT110 |
